AK-WX Vortex Separator
一、性能、特点及用途--Performance,characteristics and application

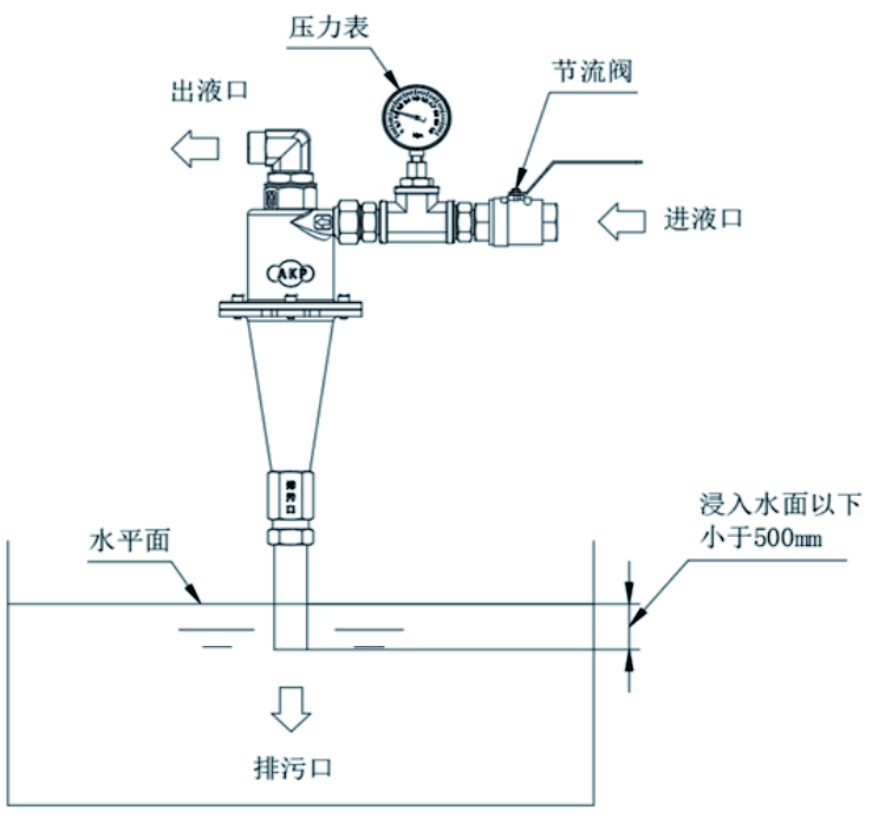

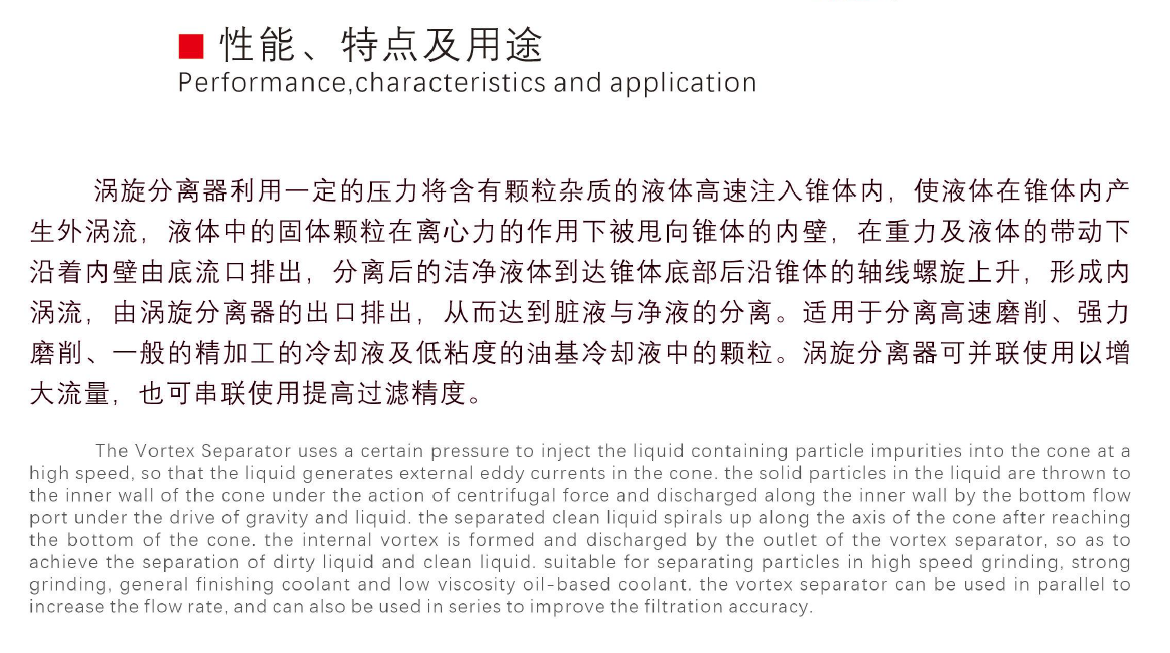

涡旋分离器利用一定的压力将含有颗粒杂质的液体高速注入锥体内，使液体在锥体内产生外涡流，液体中的固体颗粒在离心力的作用下被甩向锥体的内壁，在重力及液体的带动下沿着内壁由底流口排出，分离后的洁净液体到达锥体底部后沿锥体的轴线螺旋上升，形成内涡流，由涡旋分离器的出口排出，从而达到脏液与净液的分离。适用于分离高速磨削、强力磨削、一般的精加工的冷却液及低粘度的油基冷却液中的颗粒。涡旋分离器可并联使用以增大流量，也可串联使用提高过滤精度。
The Vortex Separator uses a certain pressure to inject the liquid containing particle impurities into the cone at a high speed, so that the liquid generates external eddy currents in the cone. the solid particles in the liquid are thrown to the inner wall of the cone under the action of centrifugal force and discharged along the inner wall by the bottom flow port under the drive of gravity and liquid. the separated clean liquid spirals up along the axis of the cone after reaching the bottom of the cone. the internal vortex is formed and discharged by the outlet of the vortex separator, so as to achieve the separation of dirty liquid and clean liquid. suitable for separating particles in high speed grinding, strong grinding, general finishing coolant and low viscosity oil-based coolant. the vortex separator can be used in parallel to increase the flow rate, and can also be used in series to improve the filtration accuracy.
二、主要技术参数与选型--Main technical parameter and selection

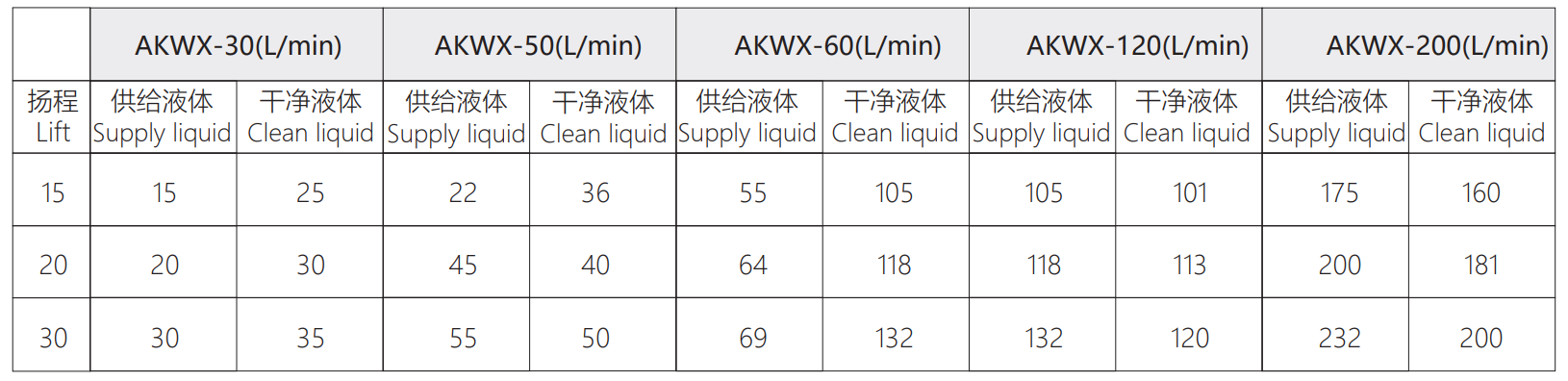

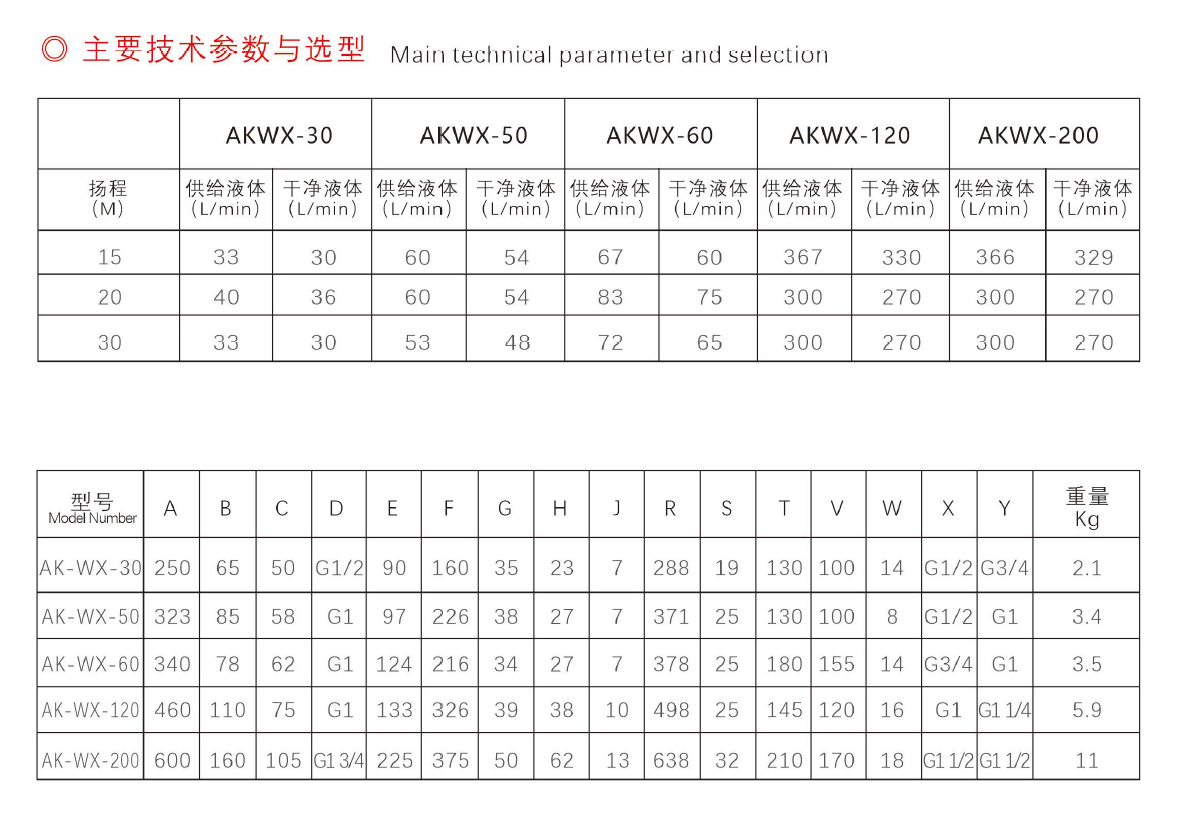

| AKWX-30 | AKWX-50 | AKWX-60 | AKWX-120 | AKWX-200 | ||||||
| 扬程(M) | 供给液体 (L/min) | 干净液体 (L/min) | 供给液体 (L/min) | 干净液体 (L/min) | 供给液体 (L/min) | 干净液体 (L/min) | 供给液体 (L/min) | 干净液体 (L/min) | 供给液体 (L/min) | 干净液体 (L/min) |
| 15 | 33 | 30 | 60 | 54 | 67 | 60 | 367 | 330 | 366 | 329 |
| 20 | 40 | 36 | 60 | 54 | 83 | 75 | 300 | 270 | 300 | 270 |
| 30 | 33 | 30 | 53 | 48 | 72 | 65 | 300 | 270 | 300 | 270 |

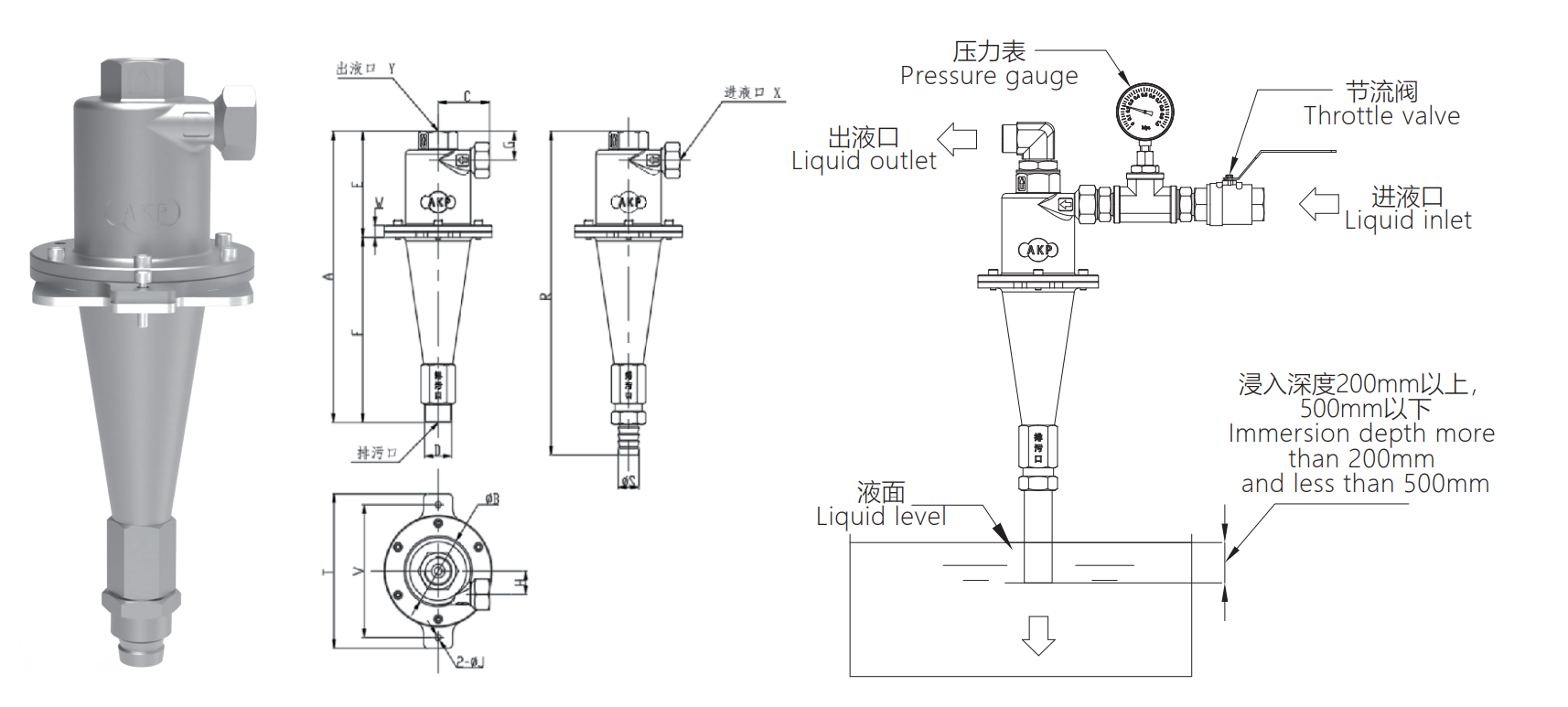

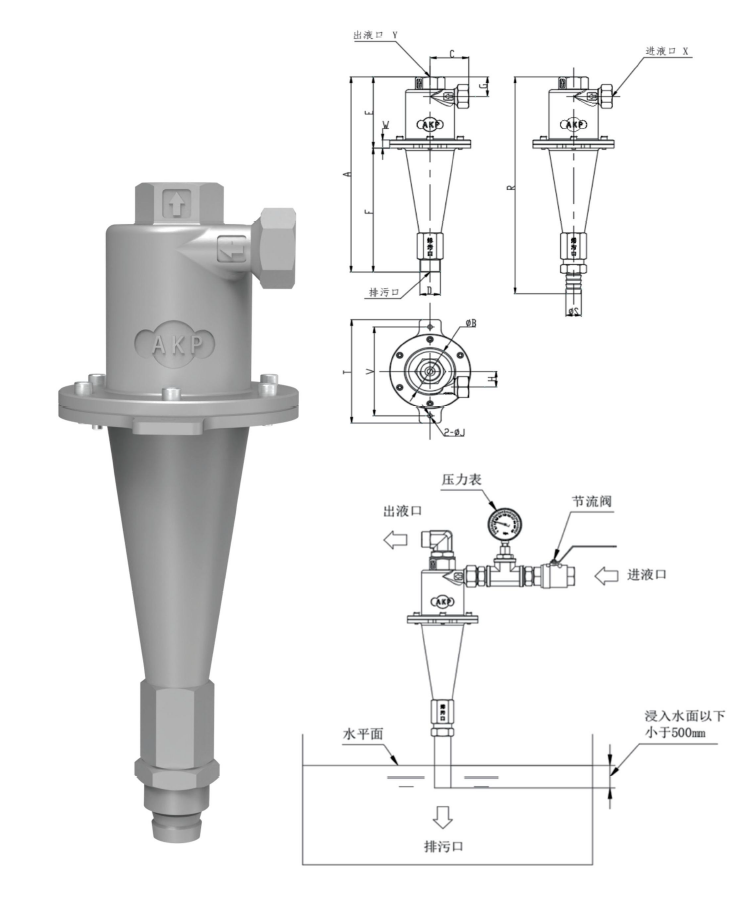

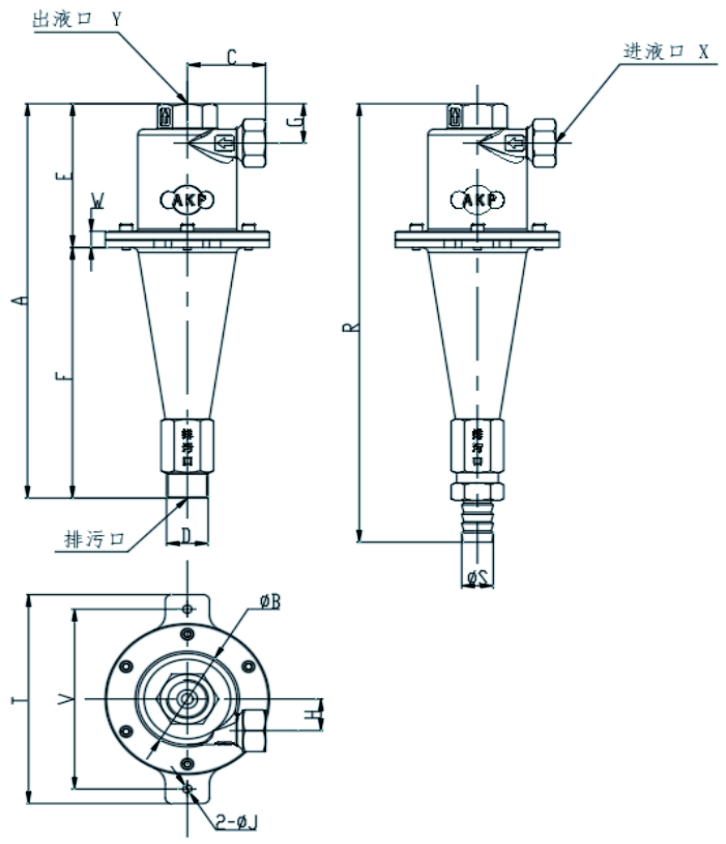

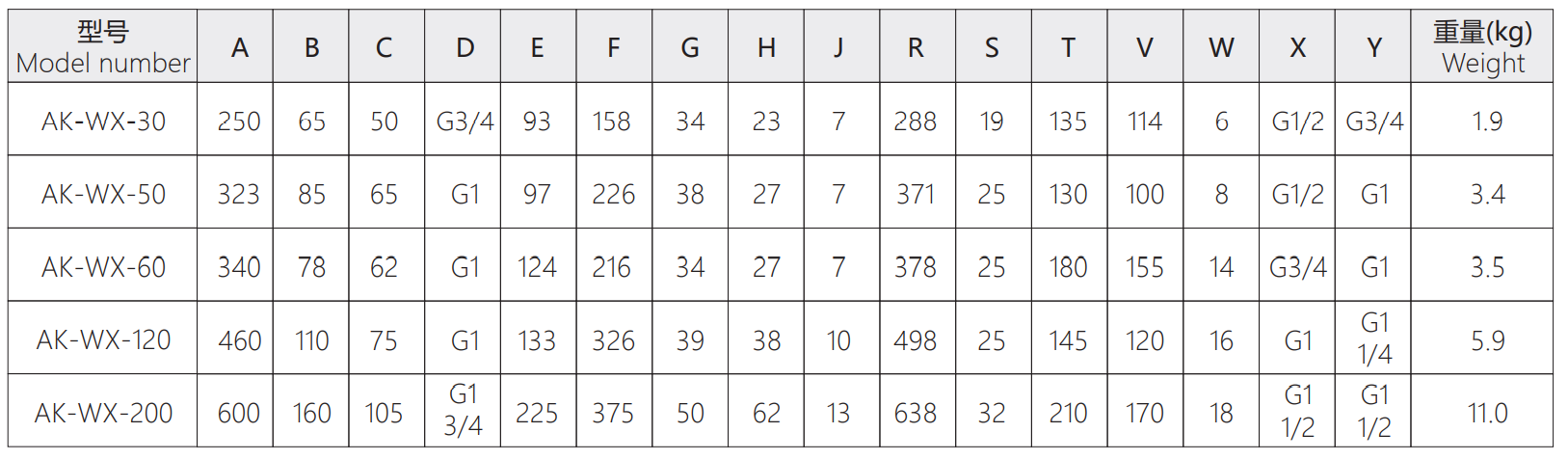

型号 Model Number | A | B | C | D | E | F | G | H | J | R | S | T | V | W | X | Y | 重量 Kg |
| AK-WX-30 | 250 | 65 | 50 | G1/2 | 90 | 160 | 35 | 23 | 7 | 288 | 19 | 130 | 100 | 14 | G1/2 | G3/4 | 2.1 |
| AK-WX-50 | 323 | 85 | 58 | G1 | 97 | 226 | 38 | 27 | 7 | 371 | 25 | 130 | 100 | 8 | G1/2 | G1 | 3.4 |
| AK-WX-60 | 340 | 78 | 62 | G1 | 124 | 216 | 34 | 27 | 7 | 378 | 25 | 180 | 155 | 14 | G3/4 | G1 | 3.5 |
| AK-WX-100 | 460 | 110 | 75 | G1 | 133 | 326 | 39 | 38 | 10 | 498 | 25 | 145 | 120 | 16 | G1 | G1 1/4 | 5.9 |
| AK-WX-200 | 600 | 160 | 160 | G1 3/4 | 225 | 375 | 50 | 62 | 13 | 638 | 32 | 210 | 170 | 18 | G1 1/2 | G1 1/2 | 11 |
