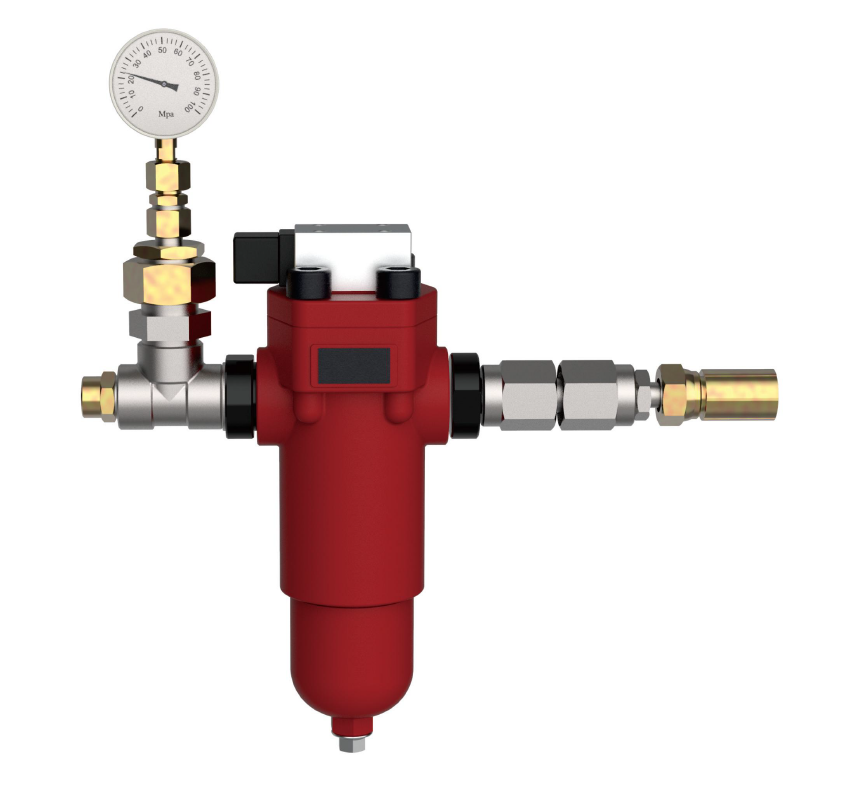

2025-07-26AK-GY高压管路过滤器
AK-GY High Pressure Filter

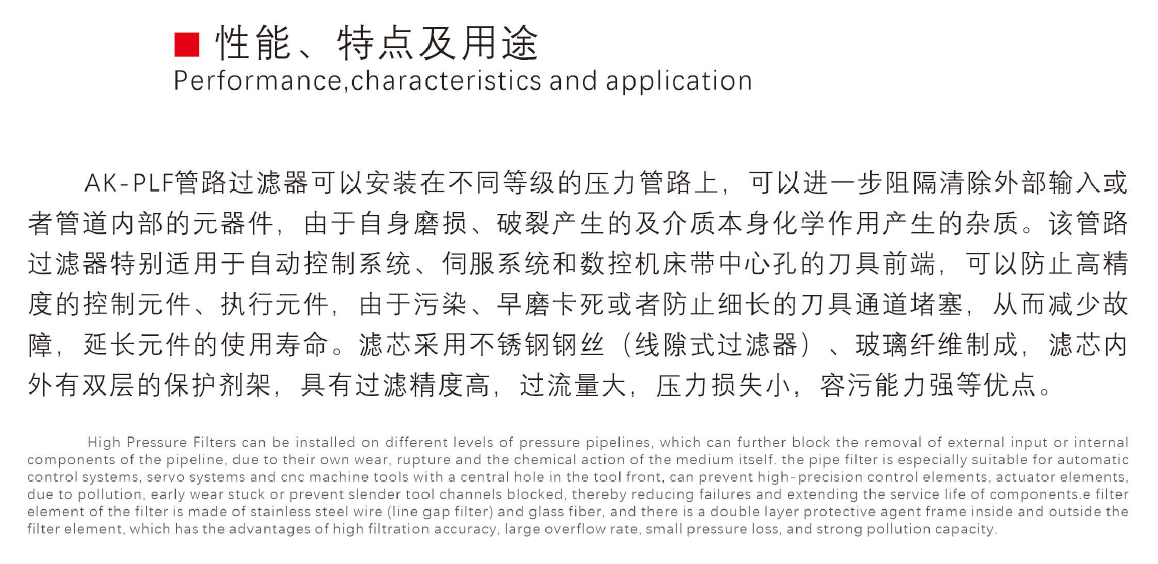

一、性能、特点及用途--Performance,characteristics and application
AK-PLF管路过滤器可以安装在不同等的压力管路上，可以进一步阻隔清除外部输入或者管道内部的元器件，由于自身磨损、破裂产生的及介质本身化学作用产生的杂质。该管路过滤器特别适用于自动控制系统、伺服系统和数控机床带中心孔的刀具前端，可以防止高精度的控制元件、执行元件，由于污染、早磨卡死或者防止细长的刀具通道堵塞，从而减少故障，延长元件的使用寿命。滤芯采用不锈钢钢丝（线隙式过滤器）、玻璃纤维制成，滤芯内外有双层的保护剂架，具有过滤精度高，过流量大，压力损失小，容污能力强等优点。
High Pressure Filters can be installed on different levels of pressure pipelines, which can further block the removal of external input or internal components of the pipeline, due to their own wear, rupture and the chemical action of the medium itself. the pipe filter is especially suitable for automatic control systems, servo systems and cnc machine tools with a central hole in the tool front, can prevent high-precision control elements, actuator elements, due to pollution, early wear stuck or prevent slender tool channels blocked, thereby reducing failures and extending the service life of components.e filter element of the filter is made of stainless steel wire (line gap filter) and glass fiber, and there is a double layer protective agent frame inside and outside the filter element, which has the advantages of high filtration accuracy, large overflow rate, small pressure loss, and strong pollution capacity.

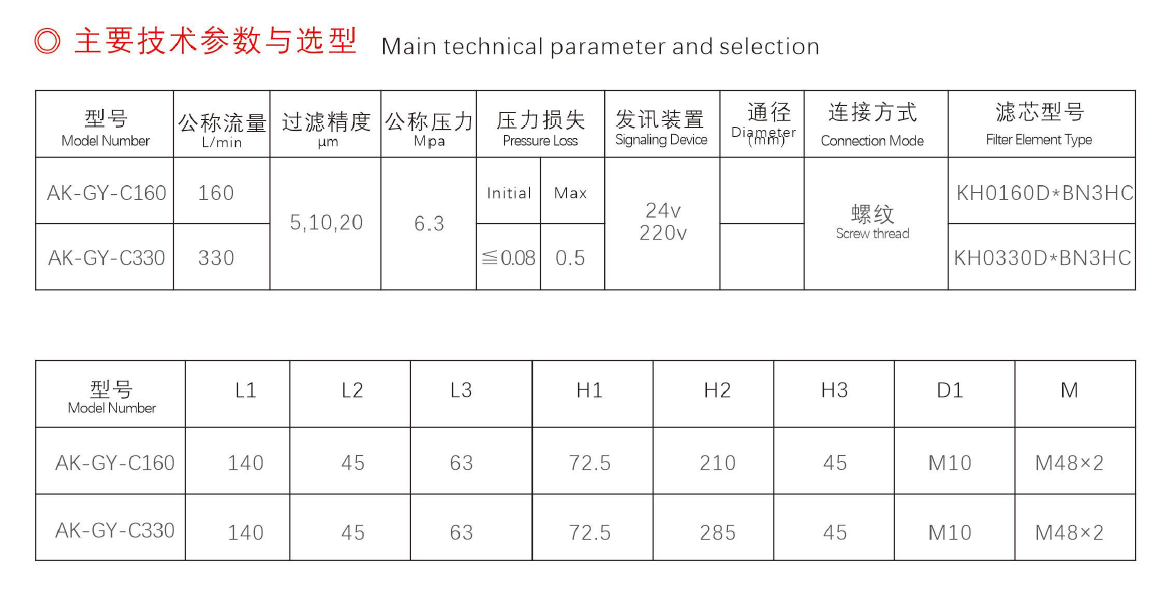

二、主要技术参数与选型--Main technical parameter and selection
型号 Model Number | 公称流量 L/min | 过滤精度 μm | 公称压力 Mpa | 压力损失 Pressure Loss | 发讯装置 Signaling Device | 通径 mm | 连接方式 Connection Mode | 滤芯型号 Filter Element Type | |
| AK-GY-C160 | 160 | 5,10,20 | 6.3 | Initial | Max | 24V 220V | 螺纹 Screw thread | KH0160D*BN3HC | |
| AK-GY-C330 | 330 | ≦0.8 | 0.5 | KH0330D*BN3HC | |||||

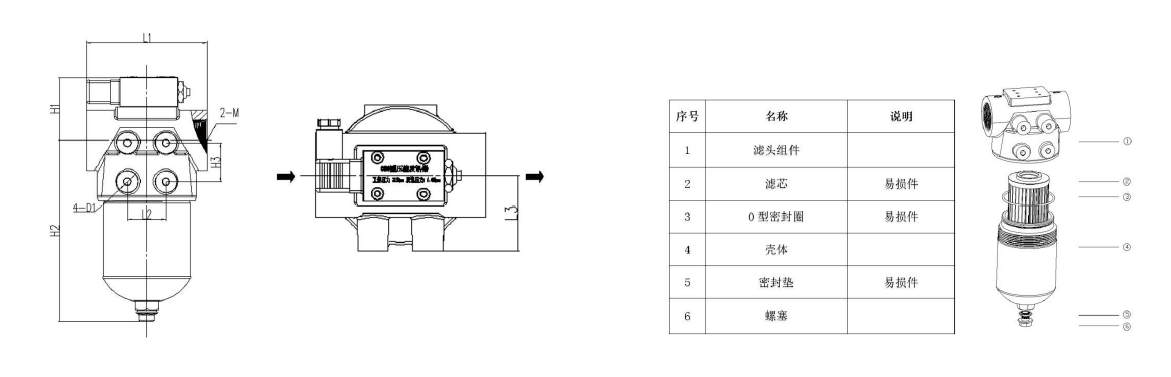

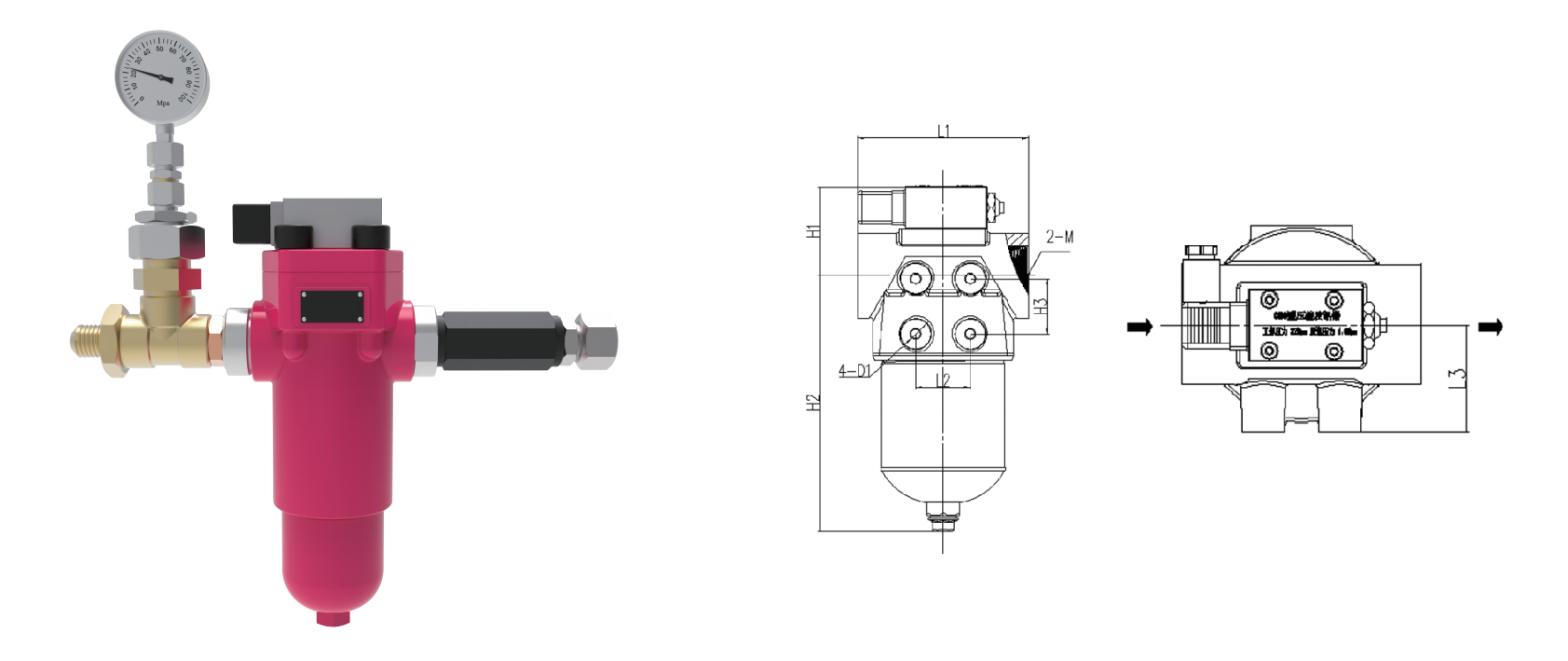

型号 Model Number | L1 | L2 | L3 | H1 | H2 | H3 | D1 | M |
| AK-GY-C160 | 140 | 45 | 63 | 72.5 | 210 | 45 | M10 | M48x2 |
| AK-GY-C330 | 140 | 45 | 63 | 72.5 | 285 | 45 | M10 | M48x2 |
