2026-05-21AK-FYDS 负压循环带式过滤机
AK-FYDS Vacuum belt filter

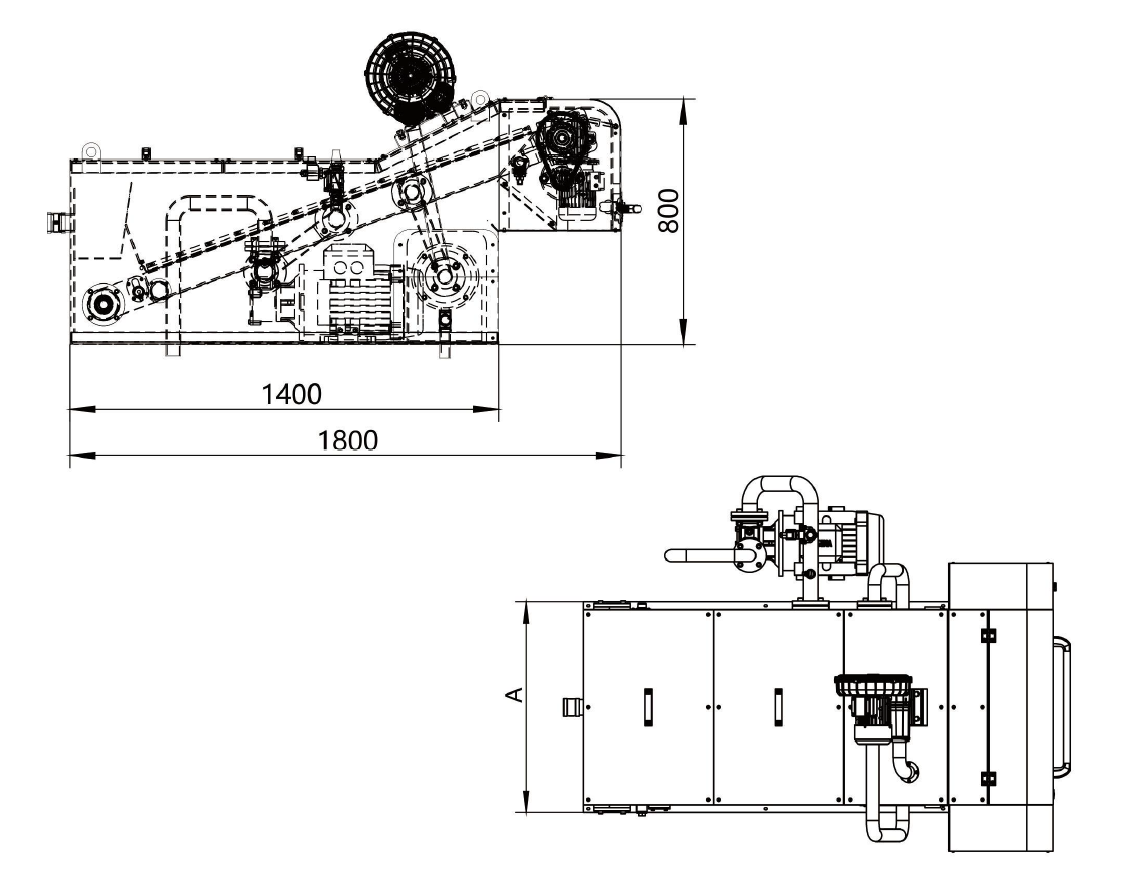

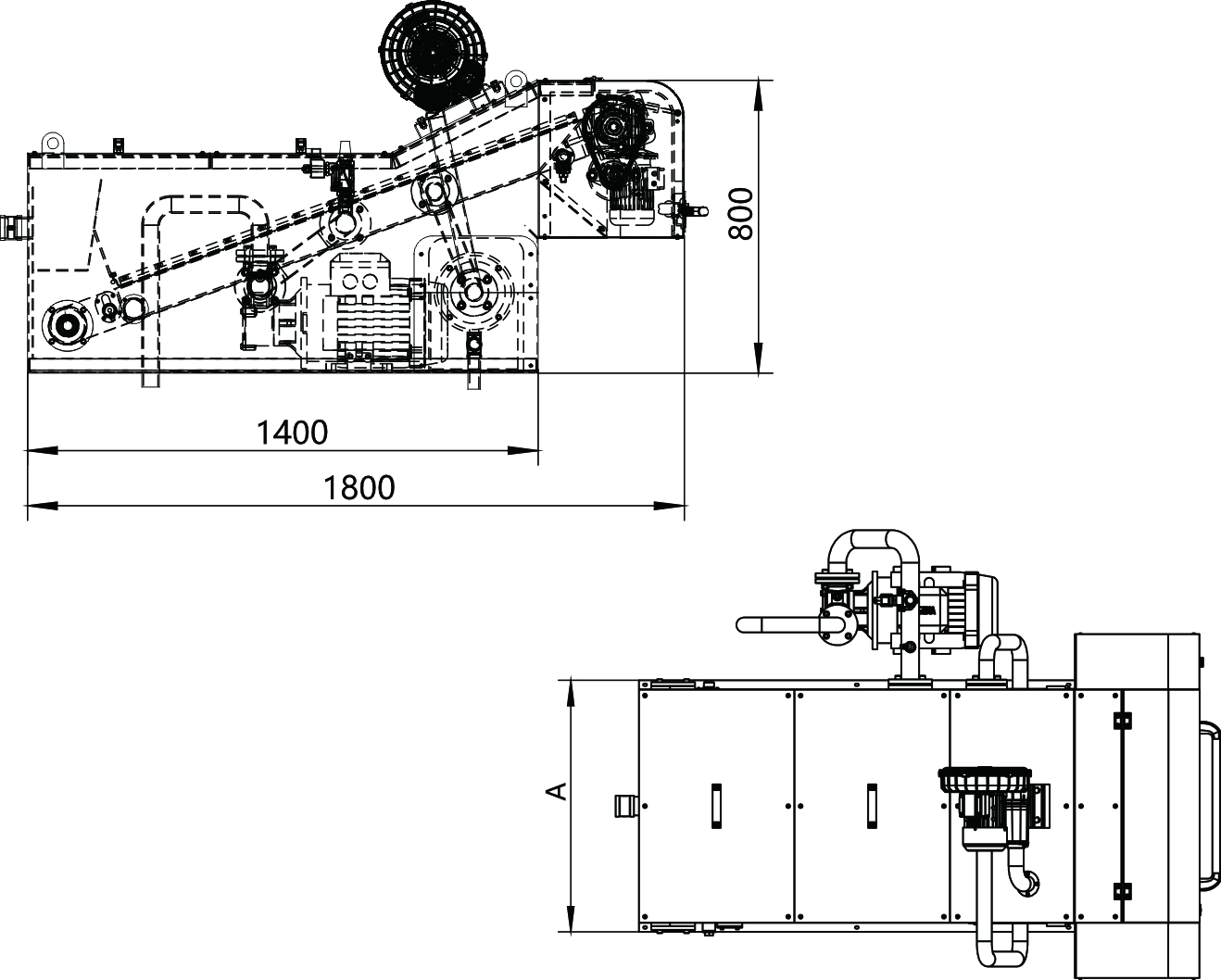

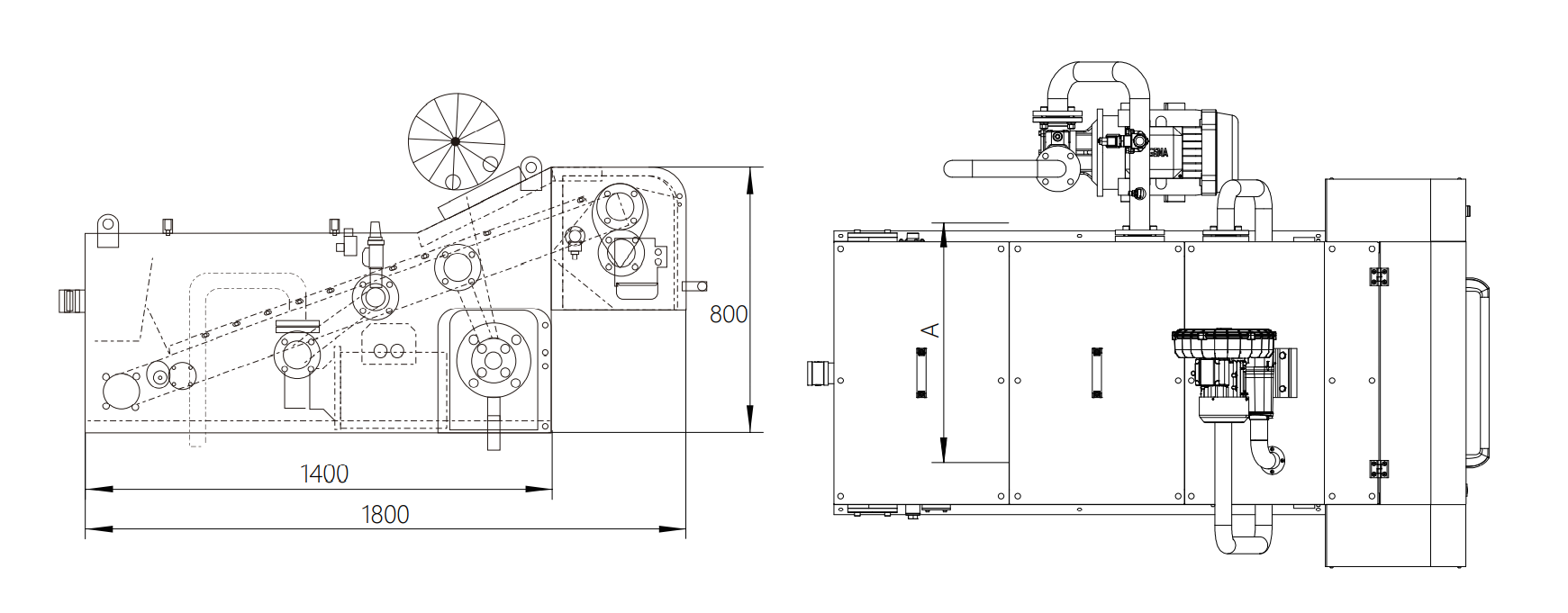

一、核心结构组成--Core structural components
二、特征优势与应用--Feature advantages and applications
通过负压加速杂质的过滤，相同过滤面积下比重力式过滤更高效、效果更佳。特别适用于数控磨削加工领域。
By using negative pressure to accelerate the filtration of impurities, it is more efficient and effective than gravity-based filtration under the same filtration area. It is particularly suitable for the field of CNC grinding processing.

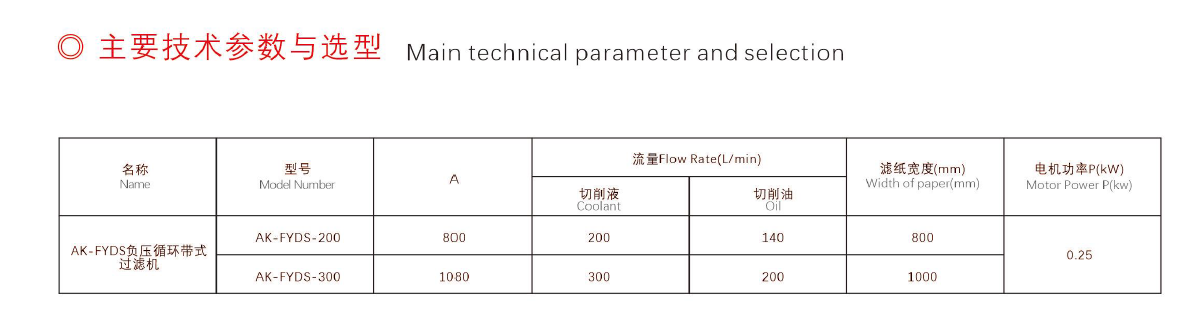

三、主要技术参数与选型--Main technical parameter and selection
名称 Name | 型号 Number | A | 流量Flow Rate(L/min) | 滤纸宽度(mm) Width of paper(mm) | 电机功率P(kW) Motor Power P(kW) | |
| 切削液 | 切削油 | |||||
AK-FYDS负压循环带式过滤机 | AK-FYDS-200 | 800 | 200 | 140 | 800 | 0.25 |
| AK-FYDS-300 | 1080 | 300 | 200 | 1000 | ||
