2026-05-20AK-CX 磁性分离过滤机
AK-CX Magnetic separation filter

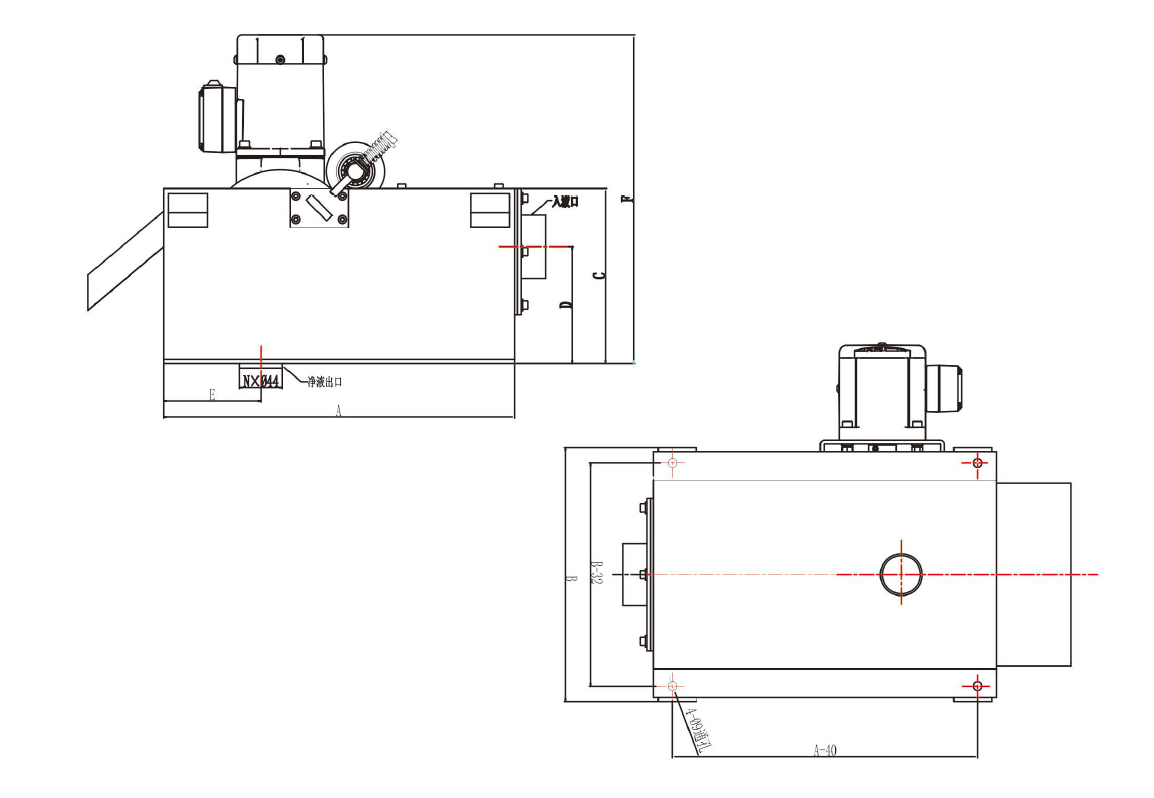

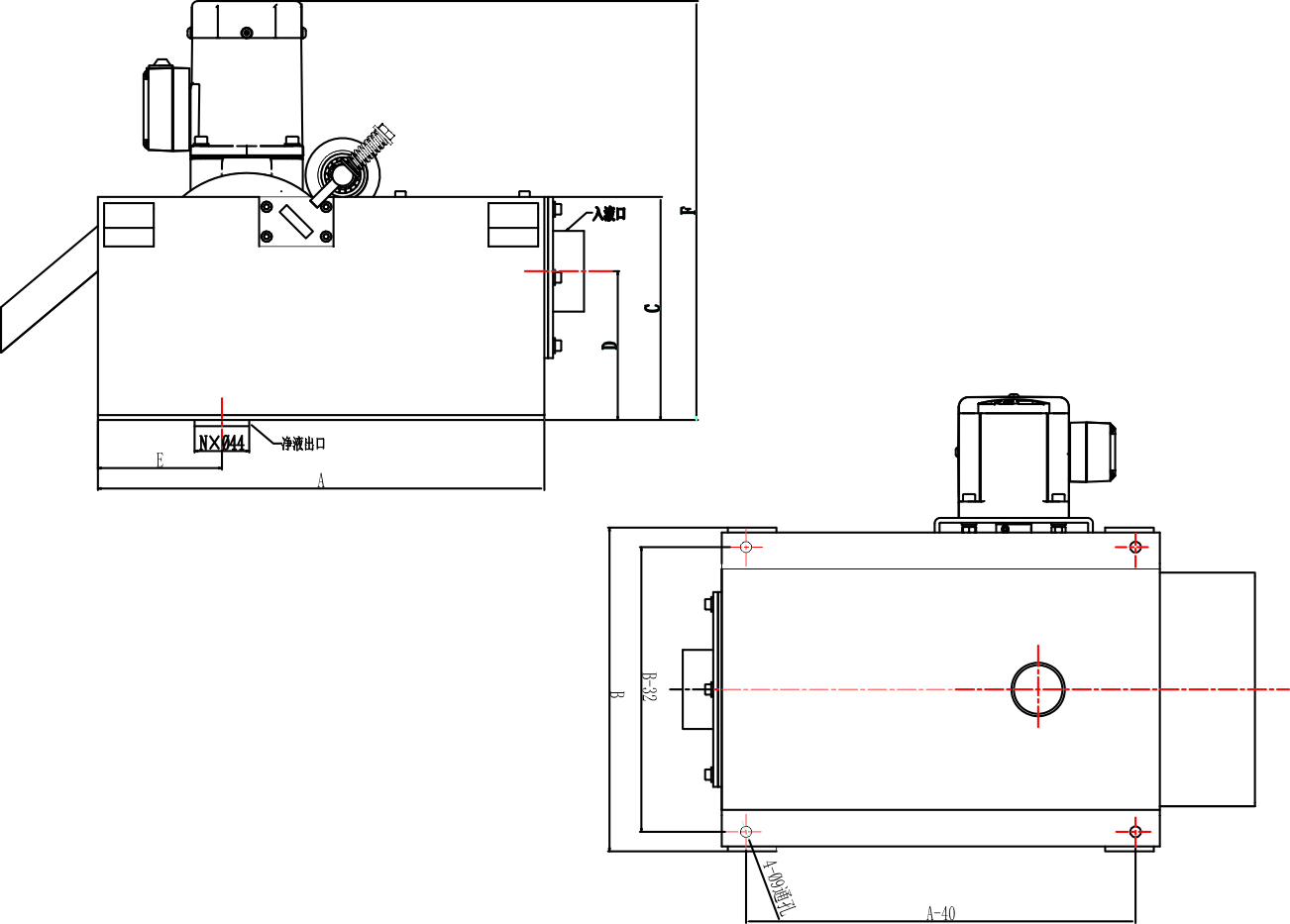

一、核心结构组成--Core structural components
二、特征优势与应用--Feature advantages and applications

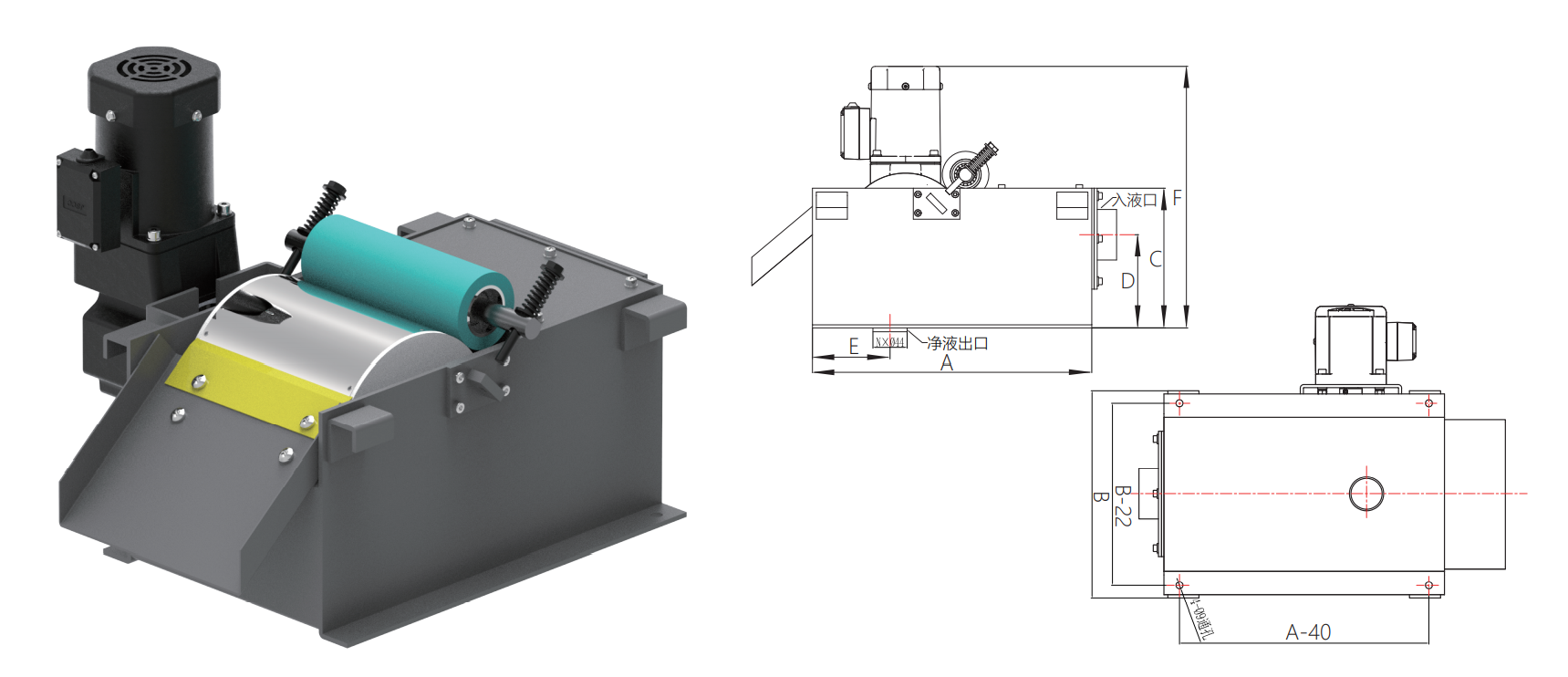

AK-CX磁性分离过滤机由以下几部分组成：减速机、箱体、磁辊、胶辊及刮屑板等。减速机带动了磁辊做圆周运动，含有粉未状吸磁杂质的冷却液进入箱体后，杂质被吸附到磁辊外壁上，经过胶辊的碾压，将杂质夹带的液体挤出，*后刮屑板将杂质与磁辊分离落入污物箱。采用了铁氧体或钕铁硼永磁材料，产生的磁场强大，能够连续排屑。广泛应用于平面磨床、内外圆磨床和无心磨床等含粉未杂质的切
削液净化场合。
AK-CX Magnetic separation filter consists of the following parts: reducer, box body, magnetic roller, rubber roller and chip scraper, etc. The reducer drives the magnetic roller to perform circular motion. After the coolant containing powder-like magnetic impurities enters the box, the impurities are adsorbed onto the outer wall of the magnetic roller. Through the pressure of the rubber roller, the liquid carried by the impurities is squeezed out. Finally, the scraper separates the impurities from the magnetic roller and they fall into the dirt box. Ferrite or neodymium iron boron permanent magnetic materials are adopted, generating a powerful magnetic field that can continuously remove chips. It is widely applied in the purification of cutting fluids containing powder without impurities, such as surface grinding machines, internal and external cylindrical grinding machines, and centerless grinding machines.

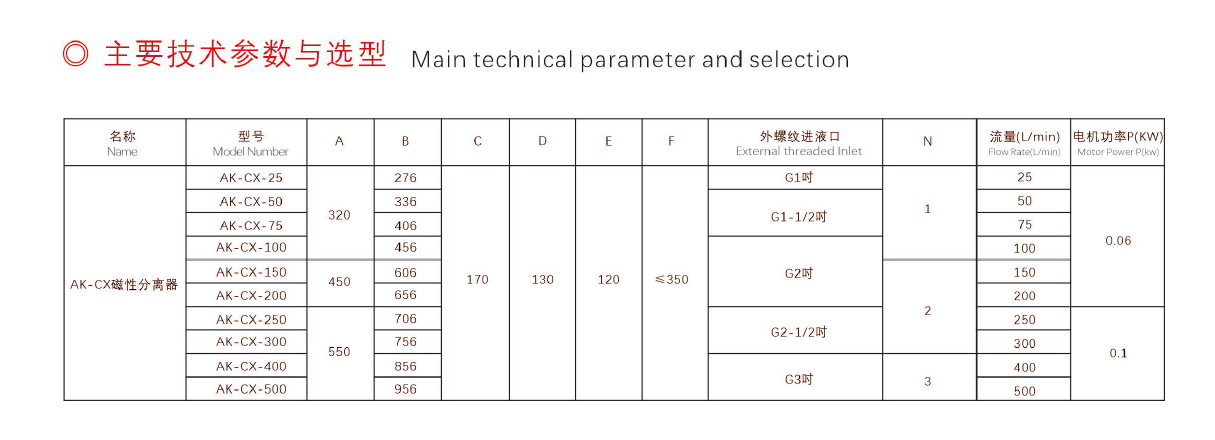

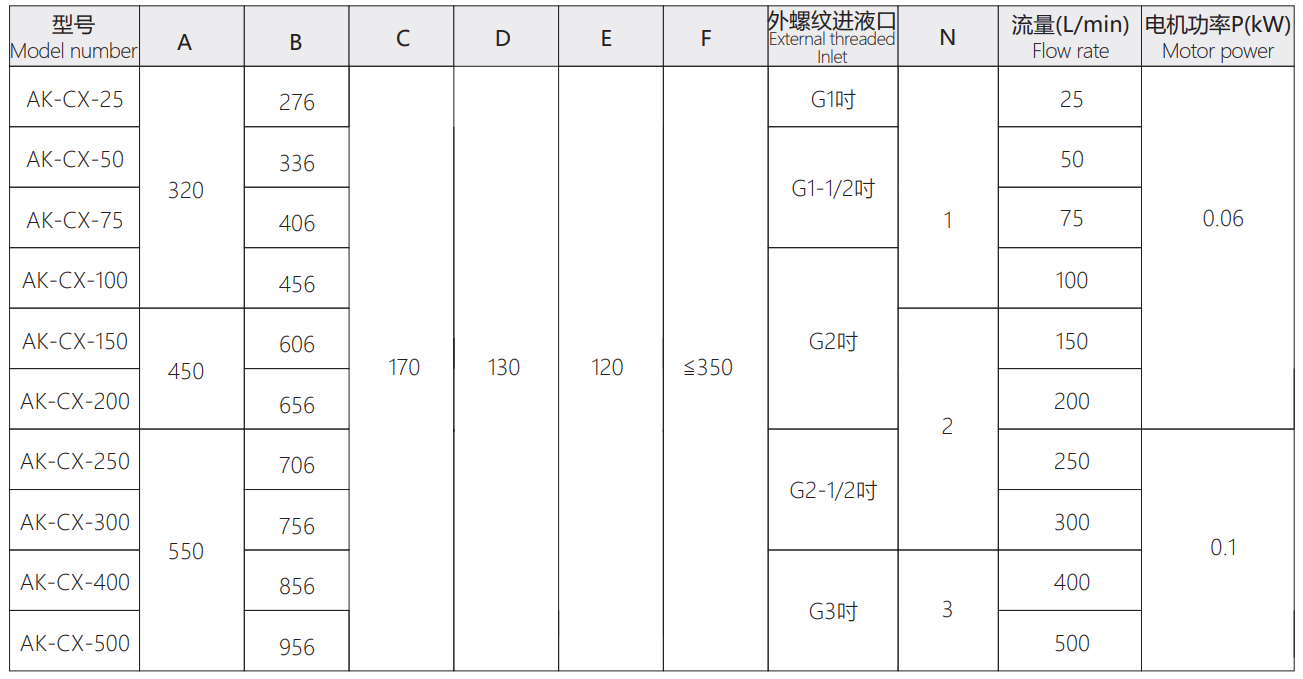

三、主要技术参数与选型--Main technical parameter and selection
