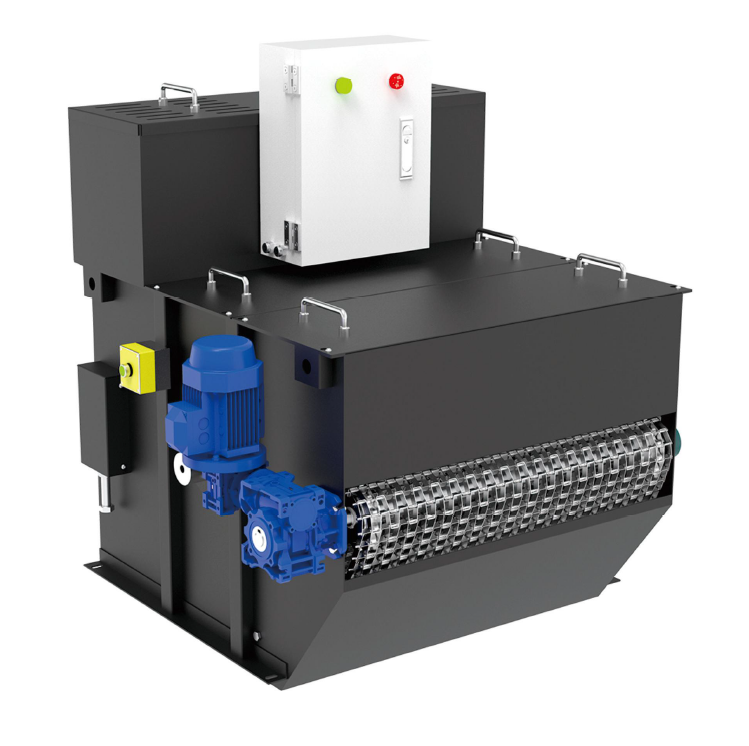

当前位置： AK-GSGL鼓式过滤机
2025-07-26AK-YC系列 永磁排屑机
AK-YC Magnetic Chip Conveyor
一、性能、特点及用途--Performance,characteristics and application
适用于铸铁材质的加工和铝材质的大颗粒物工况，适用于铝、铸铁等较为细小的工况。
It Is Suitable For The Processing Of Cast Iron Material And The Condition Of Large Particulate Matter Of Aluminum Material, And Is Suitable For The Relatively Small Working Condition Of Aluminum And Cast Iron.

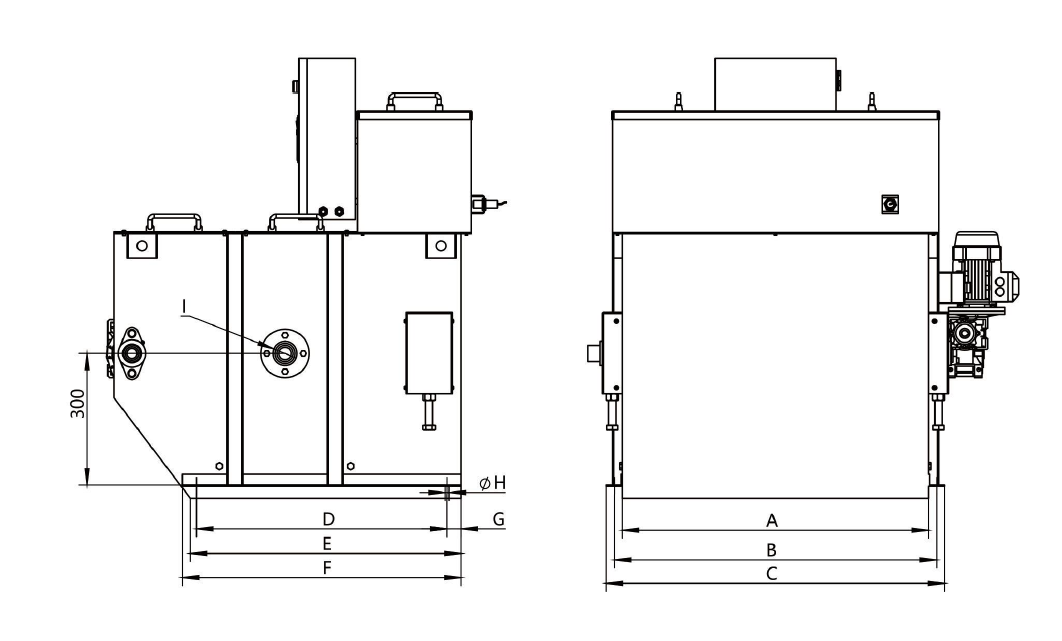

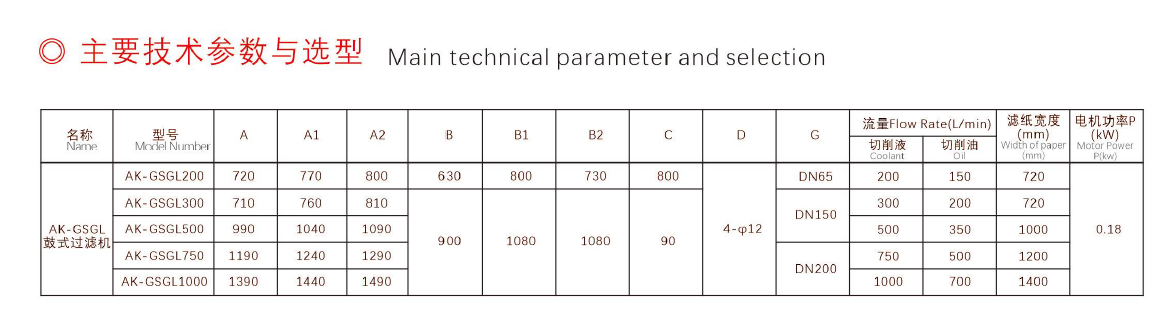

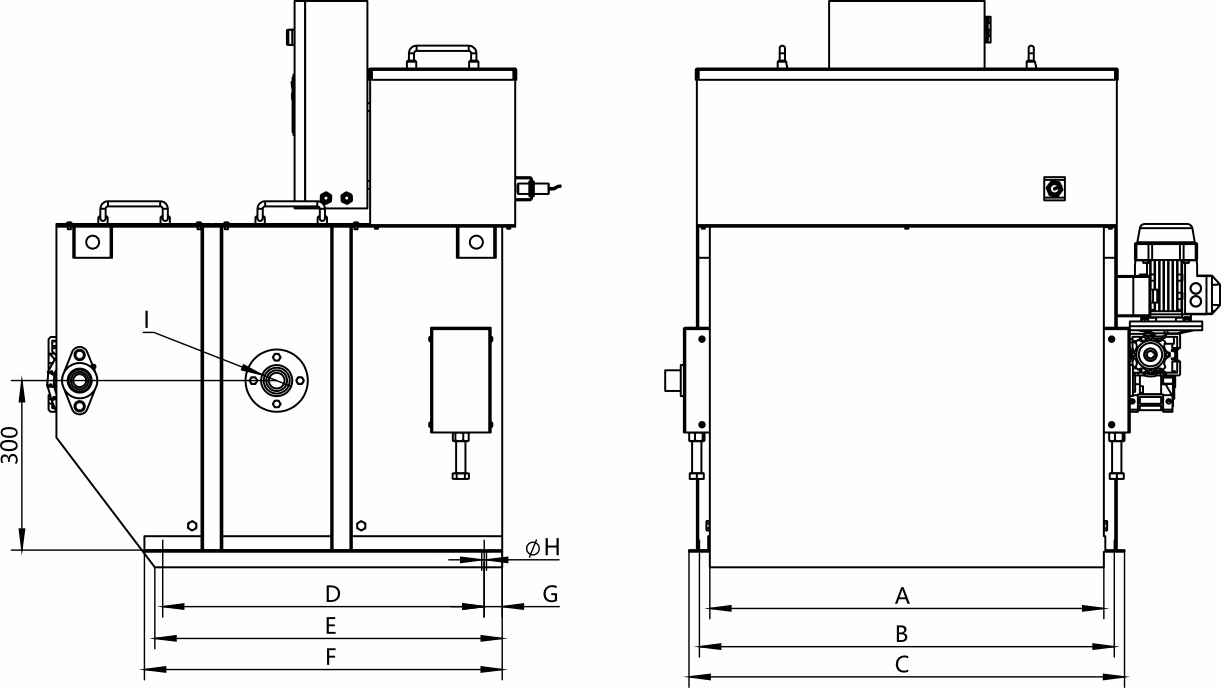

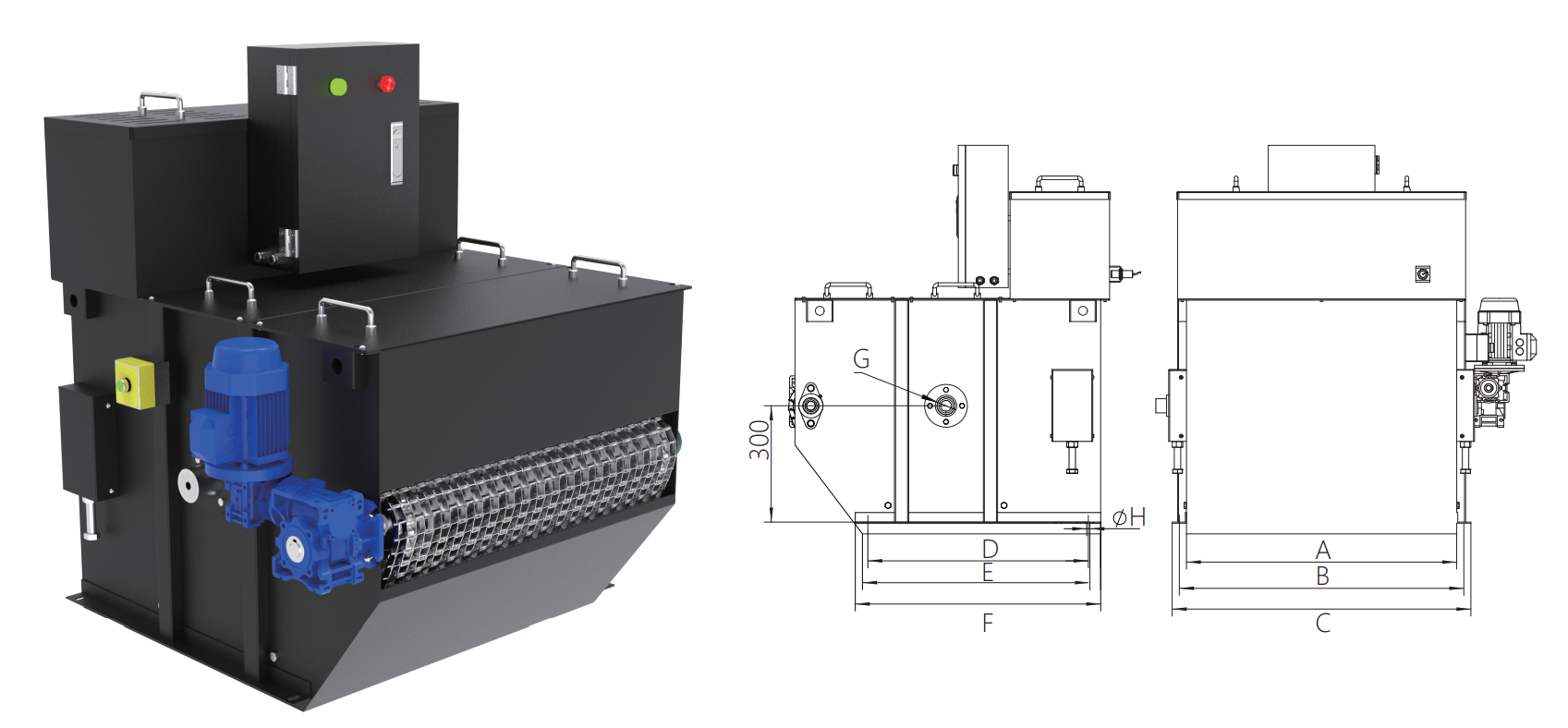

二、主要技术参数与选型--Main technical parameter and selection
名称 Name | 型号 Number | A | A1 | A2 | B | B1 | B2 | C | D | G | 流量Flow Rate (L/min) | 滤纸宽度(mm) Width of paper (mm) | 电机功率 P(kW) Motor Power P(kw) | |
| 切削液 | 切削油 | |||||||||||||
| AK-GSGL鼓式过滤机 | AK-GSGL200 | 720 | 770 | 800 | 630 | 800 | 730 | 800 | 4-φ12 | DN65 | 200 | 150 | 720 | 0.18 |
| AK-GSGL300 | 710 | 760 | 810 | 900 | 1080 | 1080 | 90 | DN150 | 300 | 200 | 720 | |||
| AK-GSGL500 | 990 | 1040 | 1090 | 500 | 350 | 1000 | ||||||||
| AK-GSGL750 | 1190 | 1240 | 1290 | DN200 | 750 | 500 | 1200 | |||||||
| AK-GSGL1000 | 1390 | 1440 | 1490 | 1000 | 700 | 1400 | ||||||||
