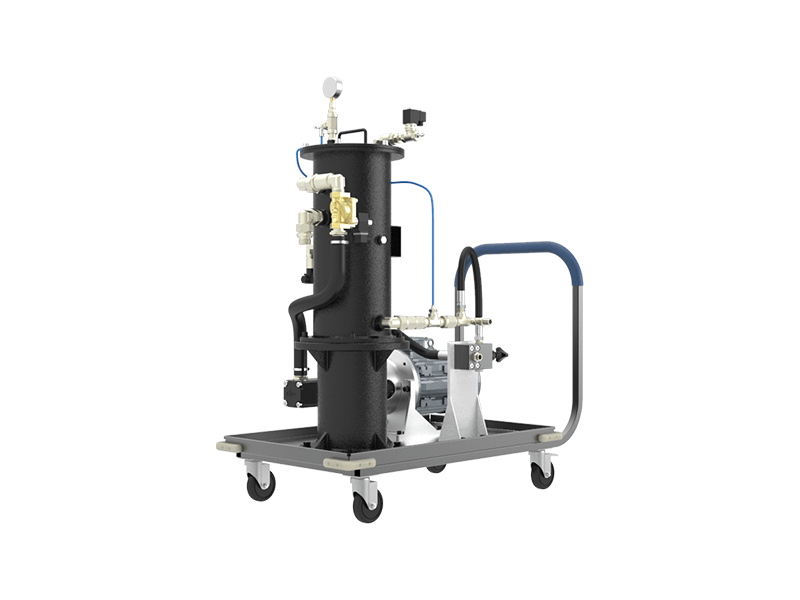

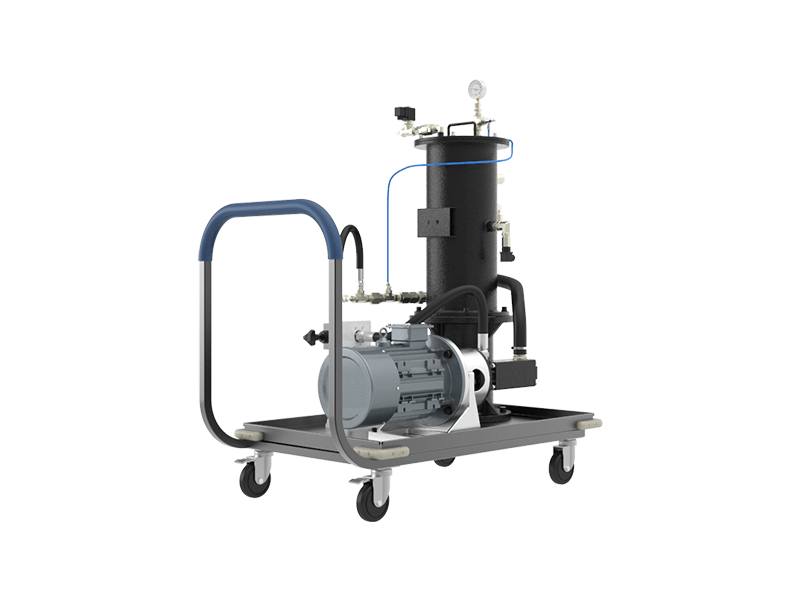

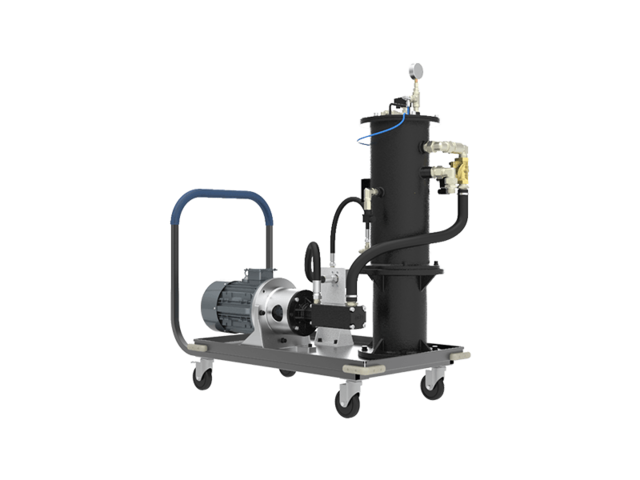

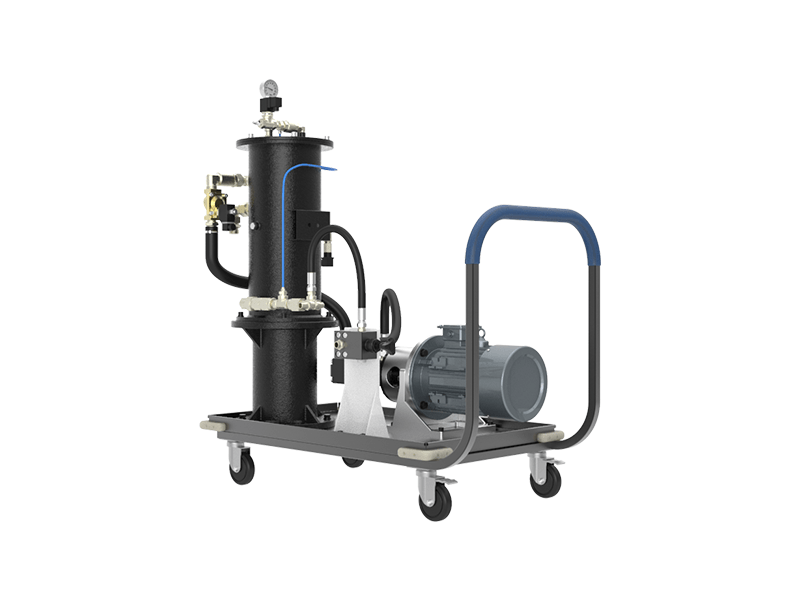

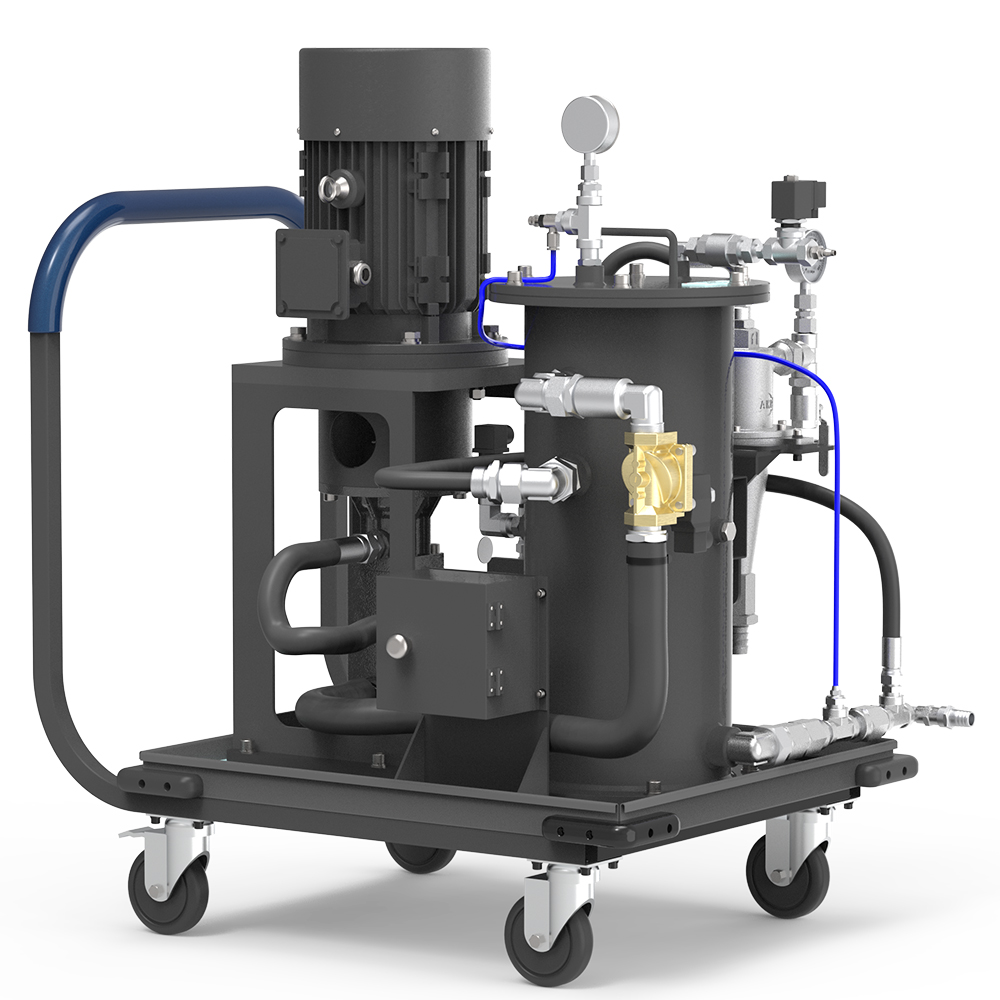

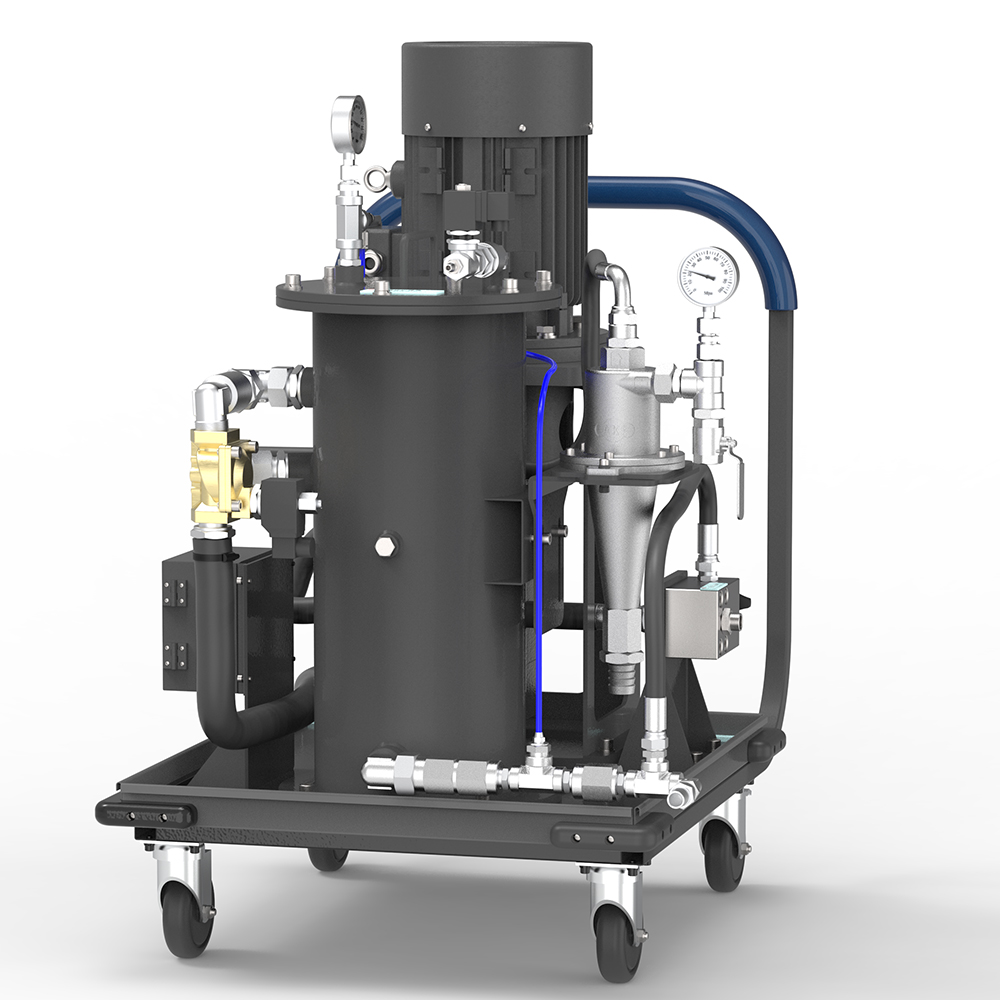

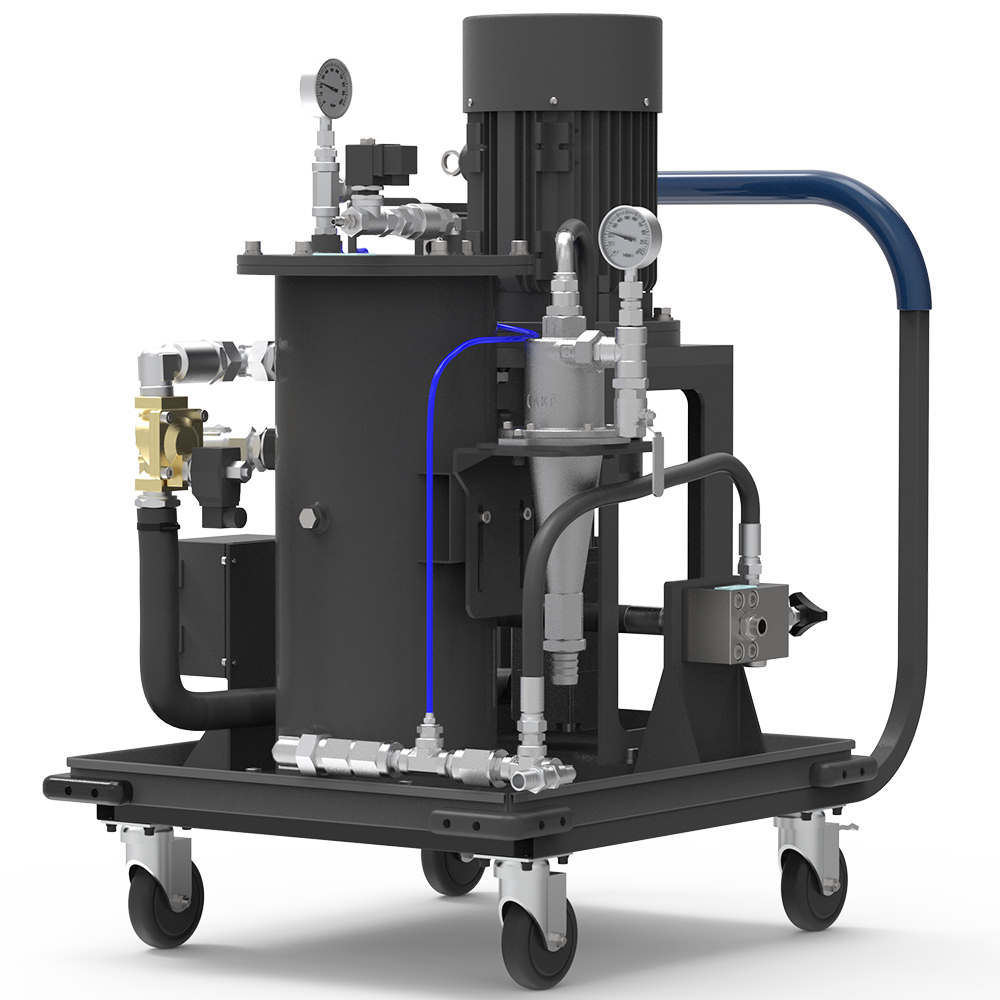

A3SS-XT8 便携推车式中心出水系统
A3SS-XT8 Portable Cart High Pressure Coolant system

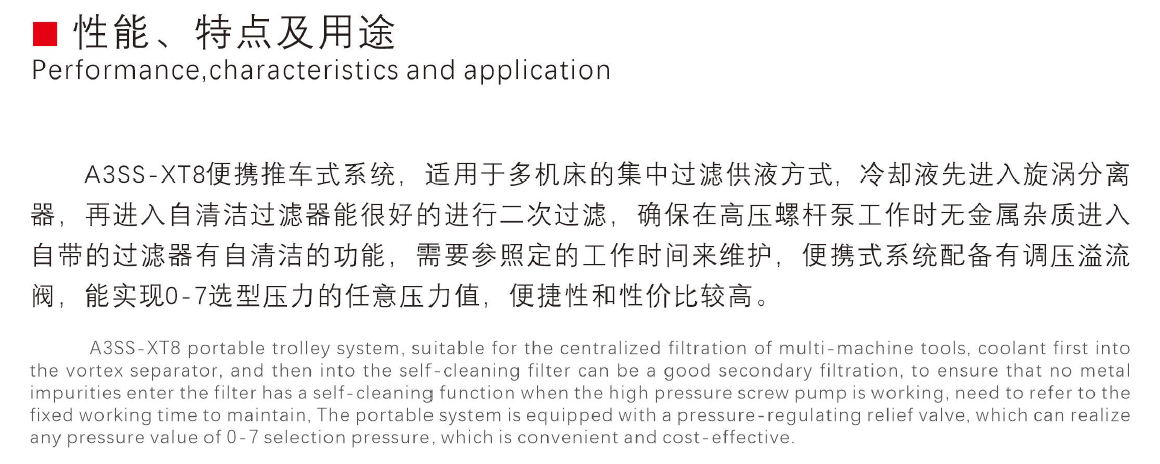

一、性能、特点及用途--Performance,characteristics and application

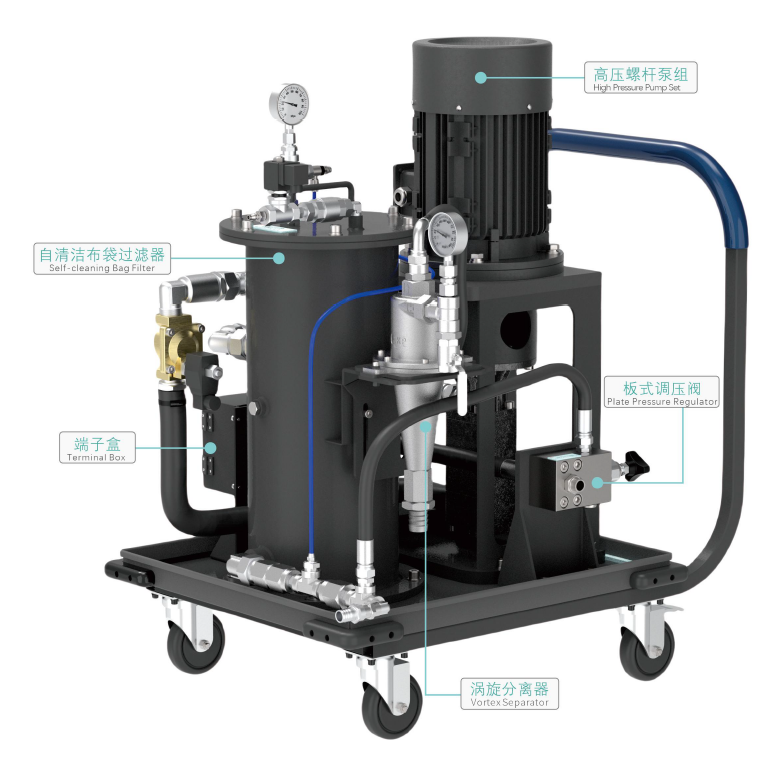

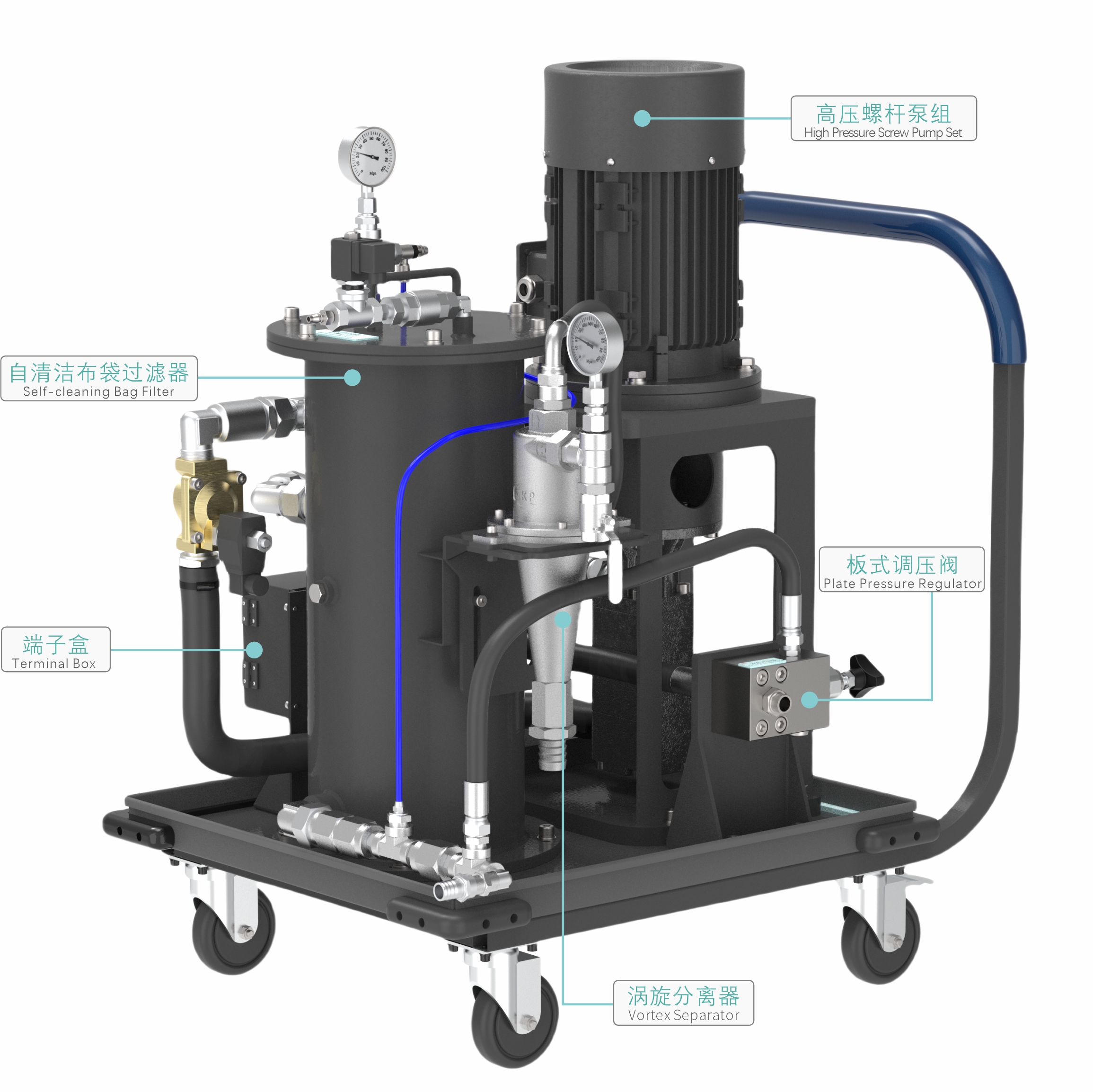

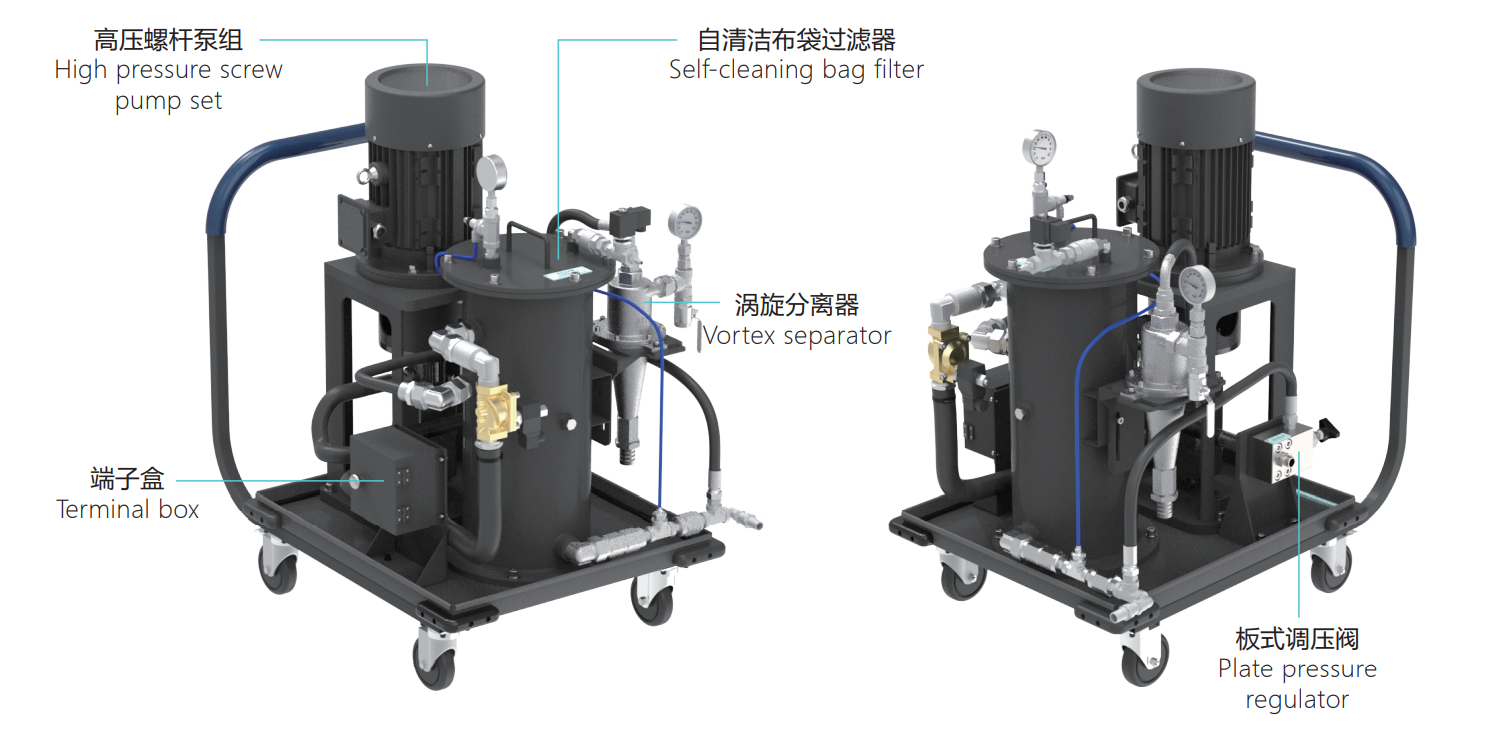

A3SS-XT8便携推车式系统，适用于多机床的集中过滤供液方式，冷却液先进入旋涡分离器，再进入自清洁过滤器能很好的进行二次过滤，确保在高压螺杆泵工作时无金属杂质进入自带的过滤器有自清洁的功能，需要参照定的工作时间来维护，便携式系统配备有调压溢流阀，能实现0-7选型压力的任意压力值，便捷性和性价比较高。
A3SS-XT8 portable trolley system, suitable for the centralized filtration of multi-machine tools, coolant first into the vortex separator, and then into the self-cleaning filter can be a good secondary filtration, to ensure that no metal impurities enter the filter has a self-cleaning function when the high pressure screw pump is working, need to refer to the fixed working time to maintain, The portable system is equipped with a pressure-regulating relief valve, which can realize any pressure value of 0-7 selection pressure, which is convenient and cost-effective.

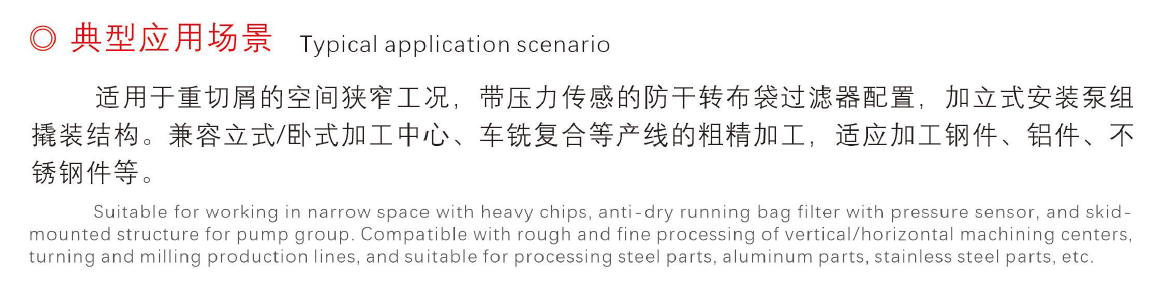

二、典型应用场景--Typical application scenario
适用于重切屑的空间狭窄工况，带压力传感的防干转布袋过滤器配置，加立式安装泵组撬装结构。兼容立式/卧式加工中心、车铣复合等产线的粗精加工，适应加工钢件、铝件、不锈钢件等。
Suitable for working in narrow space with heavy chips, anti-dry running bag filter with pressure sensor, and skid-mounted structure for pump group. Compatible with rough and fine processing of vertical/horizontal machining centers, turning and milling production lines, and suitable for processing steel parts, aluminum parts, stainless steel parts, etc.
