CJC3SS-XT3 PLC控制柜中心射流清屑机
CJC3SS-XT3 PLC control cabinet central jet cleaner

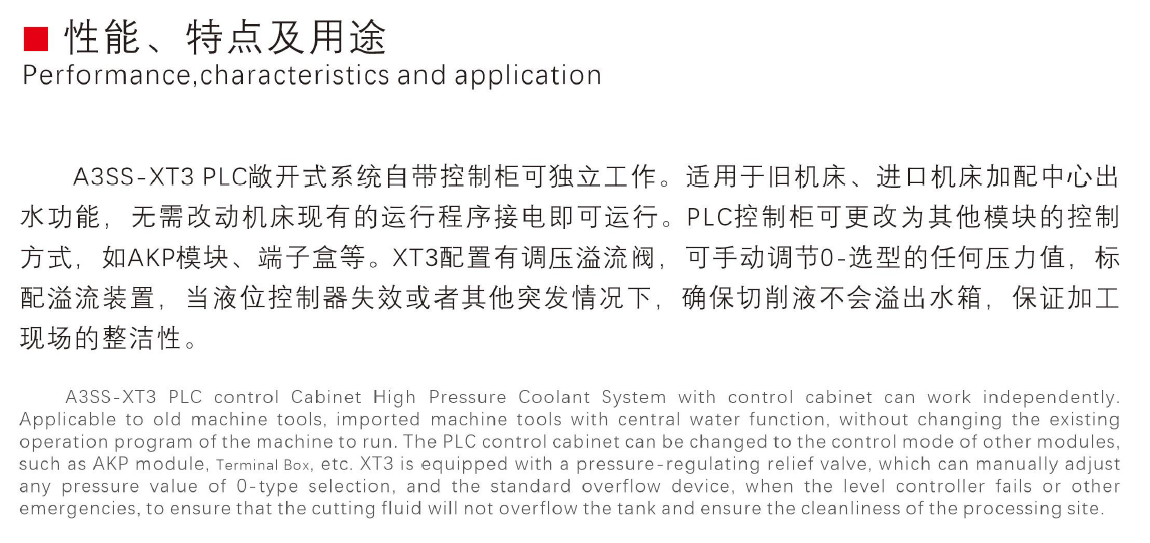

一、特征优势与应用--Feature advantages and applications
CJC3SS-XT3 PLC控制柜中心射流清屑机自带控制柜可独立工作。适用于旧机床、进口机床加配中心出水功能，无需改动机床现有的运行程序接电即可运行。PLC控制柜可更改为其他模块的控制方式，如AKP模块、端子盒等。XT3配置有调压溢流阀，可手动调节0-选型的任何压力值，标配溢流装置，当液位控制器失效或者其他突发情况下，确保切削液不会溢出水箱，保证加工现场的整洁性。
CJC3SS-XT3 PLC control cabinet central jet cleaner with control cabinet can work independently. Applicable to old machine tools, imported machine tools with central water function, without changing the existing operation program of the machine to run. The PLC control cabinet can be changed to the control mode of other modules, such as AkP module, Terminal Box, etc. XT3 is equipped with a pressure-regulating relief valve, which can manually adjust any pressure value of 0-type selection, and the standard overflow device, when the level controller fails or other emergencies to ensure that the cuting fuid will not overflow the tank and ensure the cleanliness of the processing site.
二、典型应用场景--Typical application scenario
所有控制集成在PLC柜内，能自主独立控制，对于终端客户减少了编辑系统逻辑的烦恼，只需给开关信号。优化敞开接口设计，兼容立式/卧式加工中心、龙门、车铣复合设备，钢件、铝件高效加工验证，兼顾铸件轻切削的应用。
CJC3SS-XT3 PLC control cabinet central jet ceaner with control cabinet can work independently. Applicable to old machine tools, imported machine tools with central water function, wthout changing the existing operation program of the machine to run. The PLC control cabinet can be changed to the control mode of other modules, such as AkP module, Terminal Box etc. XT3 is equipped with a pressure-regulating relief valve, which can manually adjust any pressure value of 0-type selection, and the standard overflow device, when the level controller fails or other emergencies to ensure that the cutting fuid will not overflow the tank and ensure the cleanliness of the processing site.

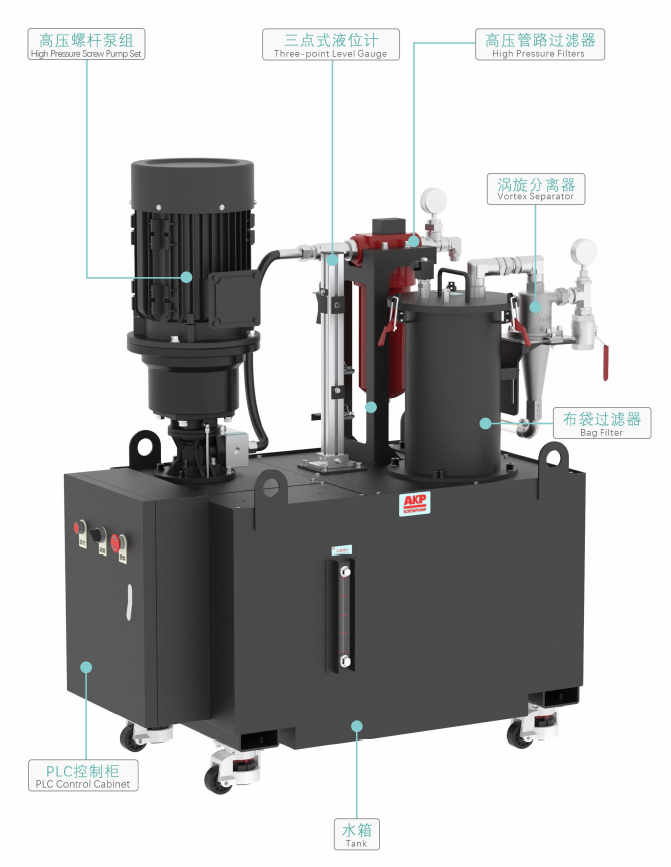

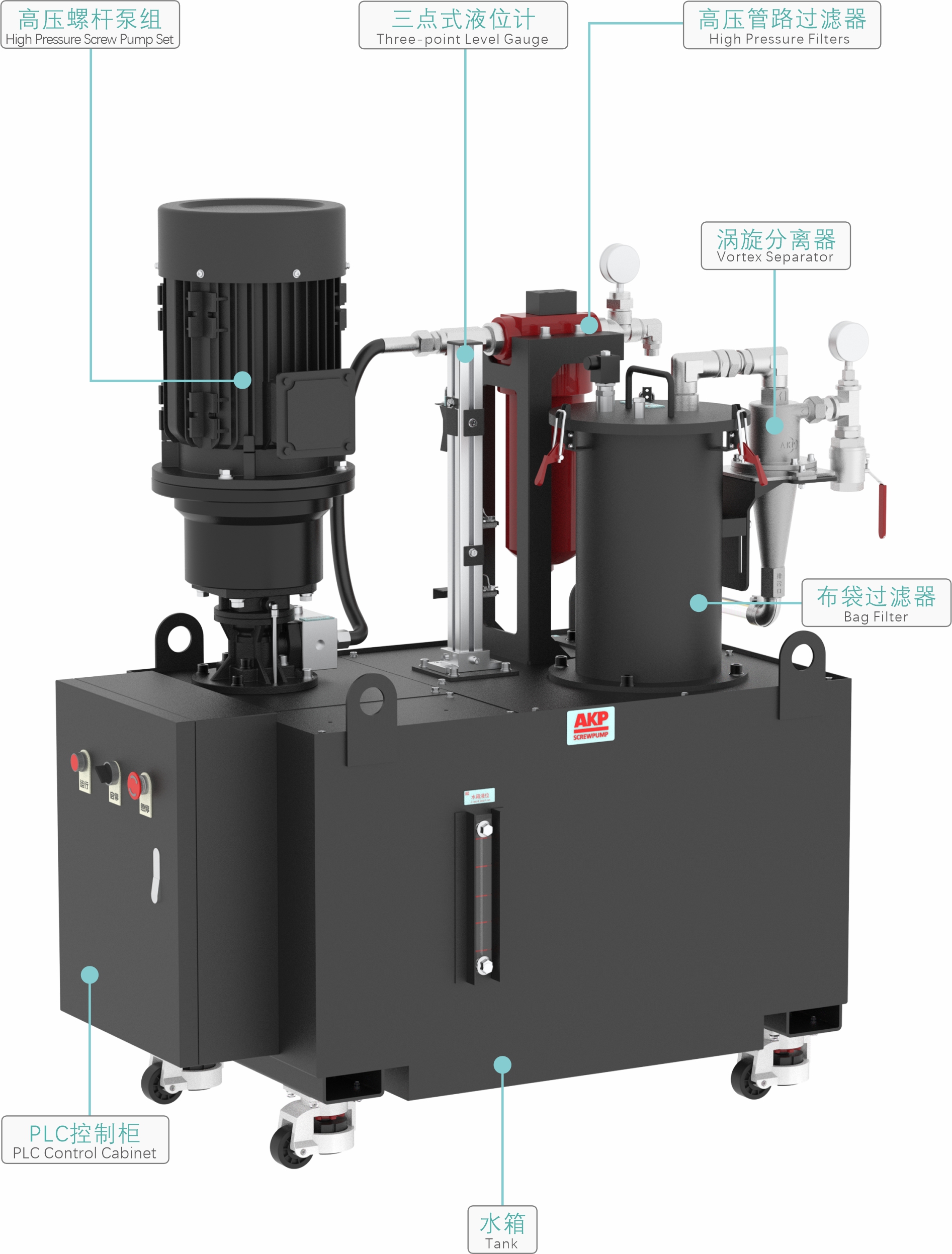

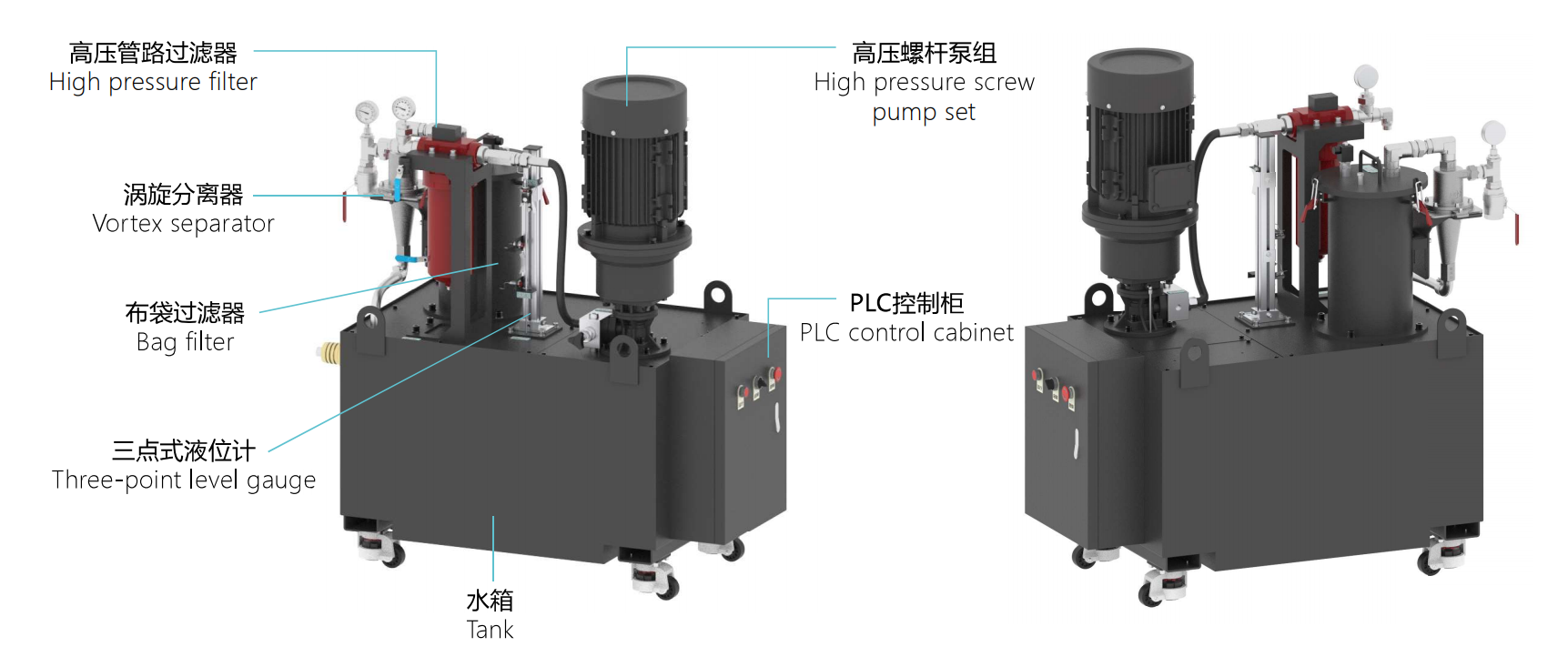

三、核心结构组成--Core structural components
