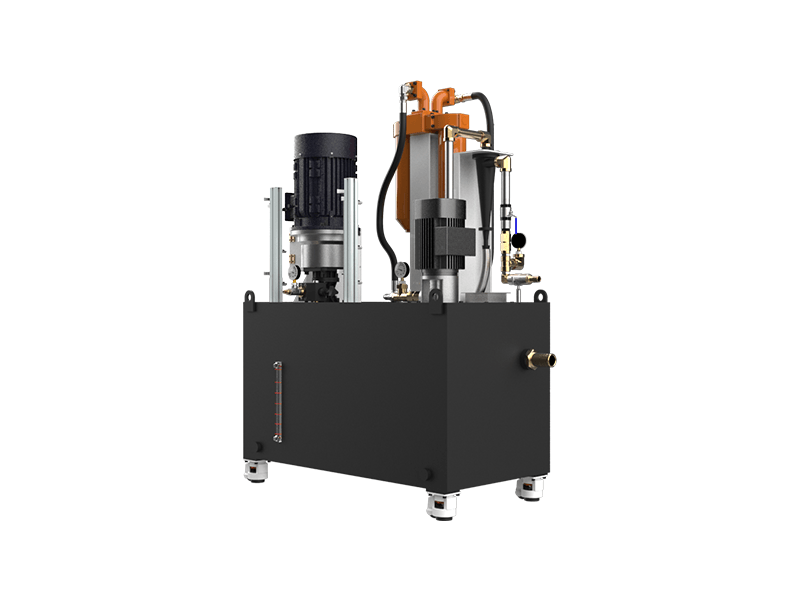

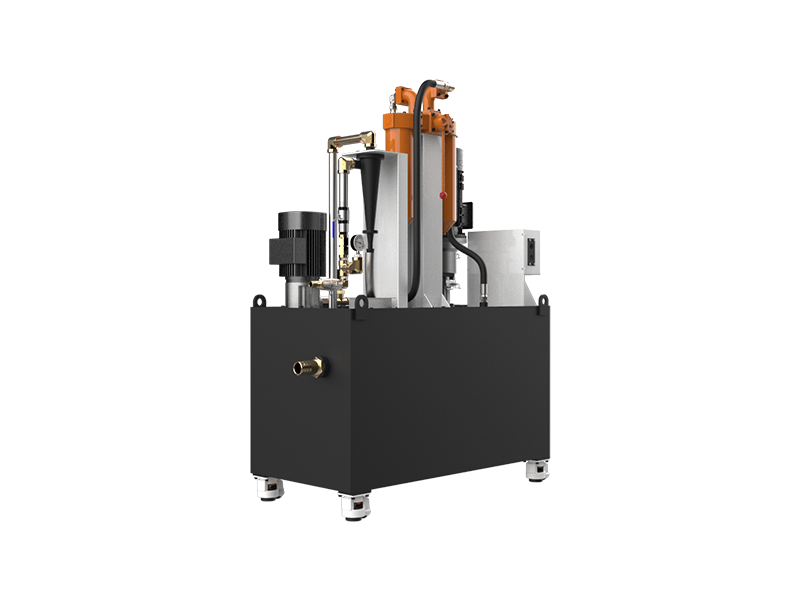

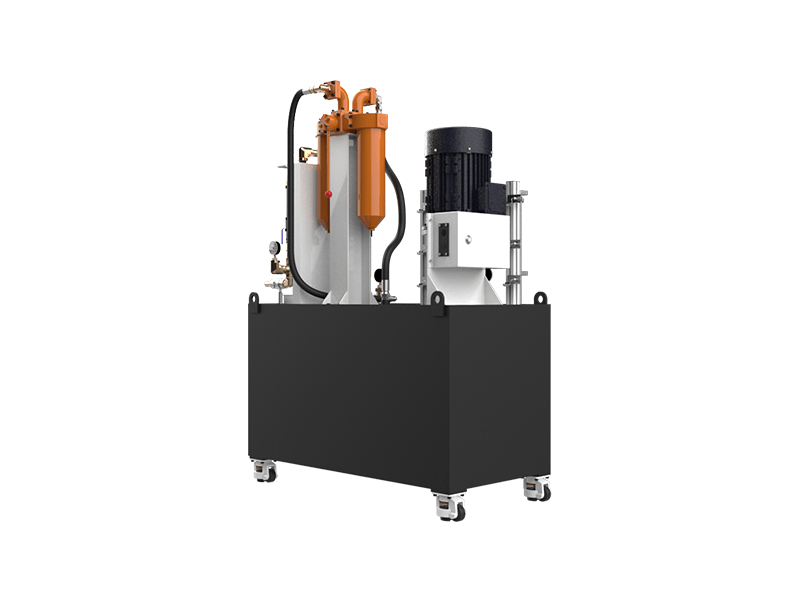

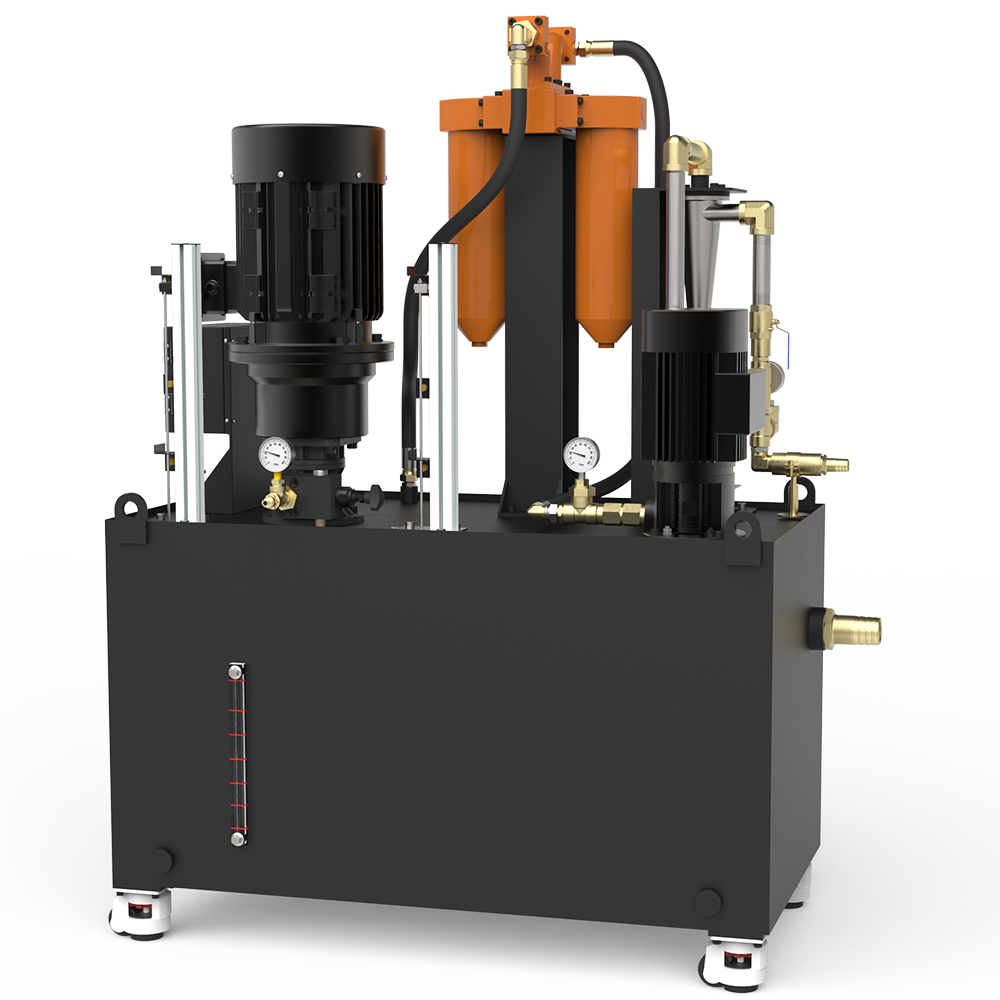

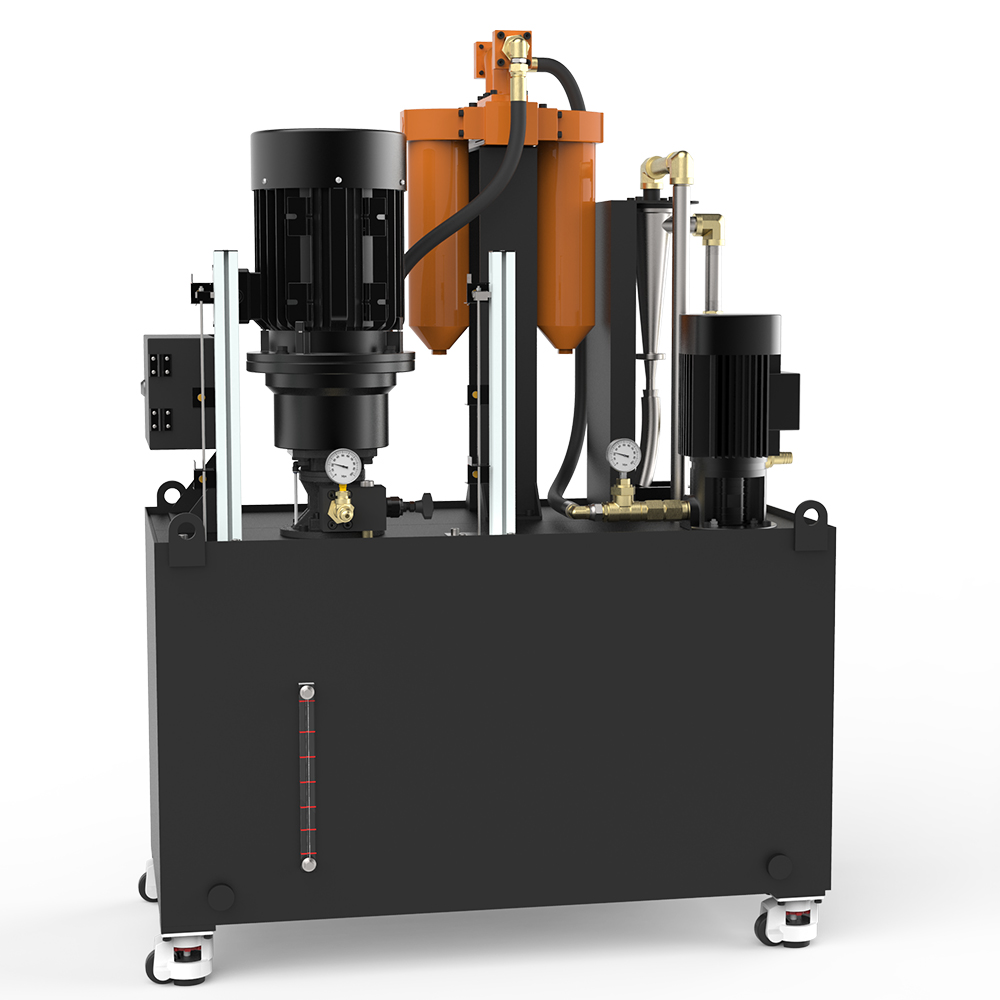

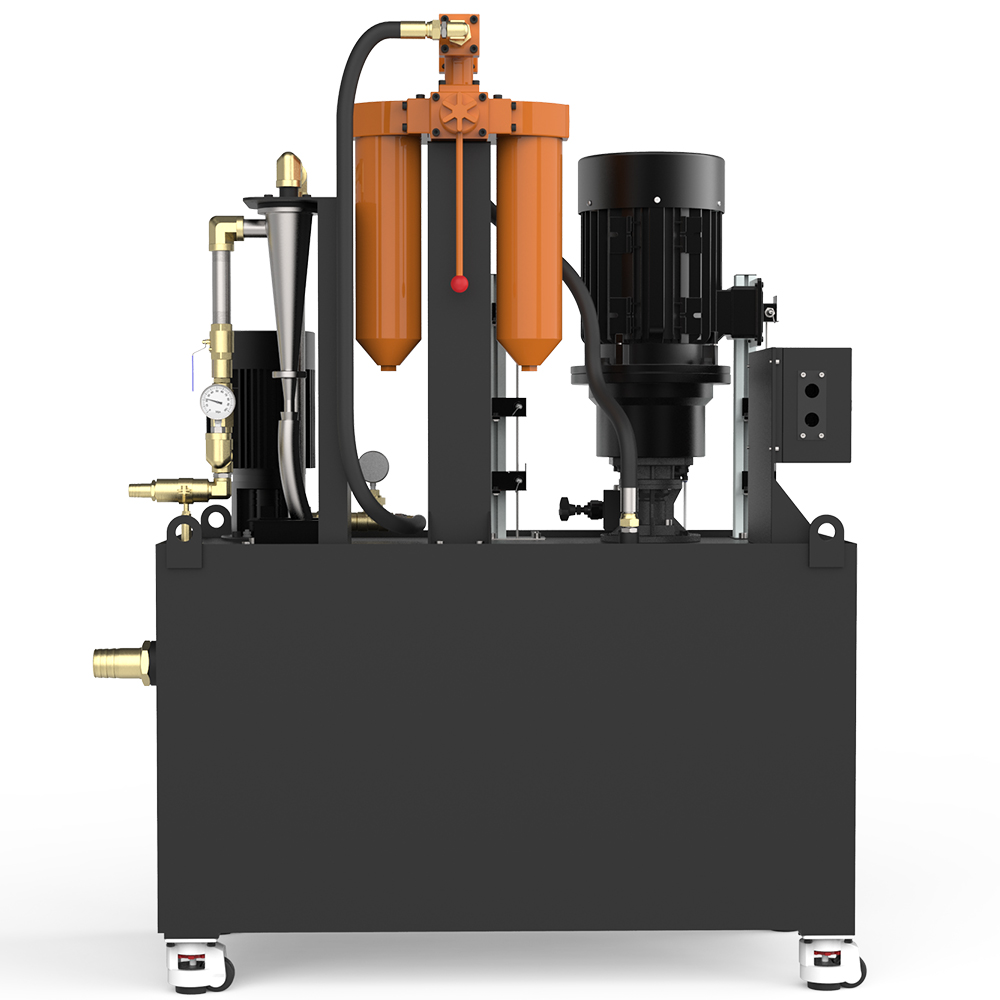

A3SS-XT7 双切换过滤中心出水系统
A3SS-XT7 Double Switch Filter High Pressure Coolant System

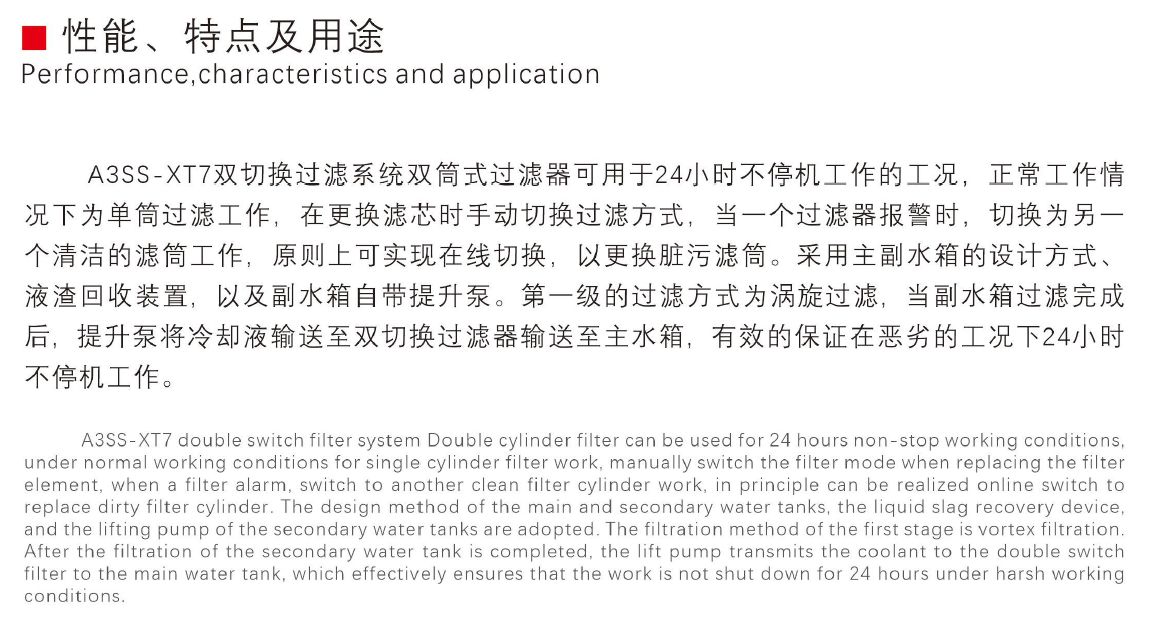

一、性能、特点及用途--Performance,characteristics and application

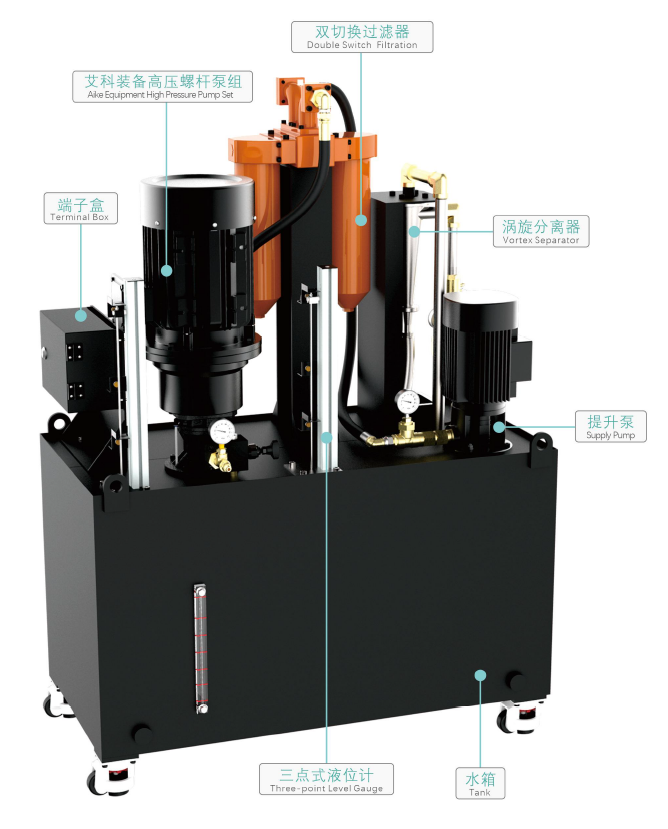

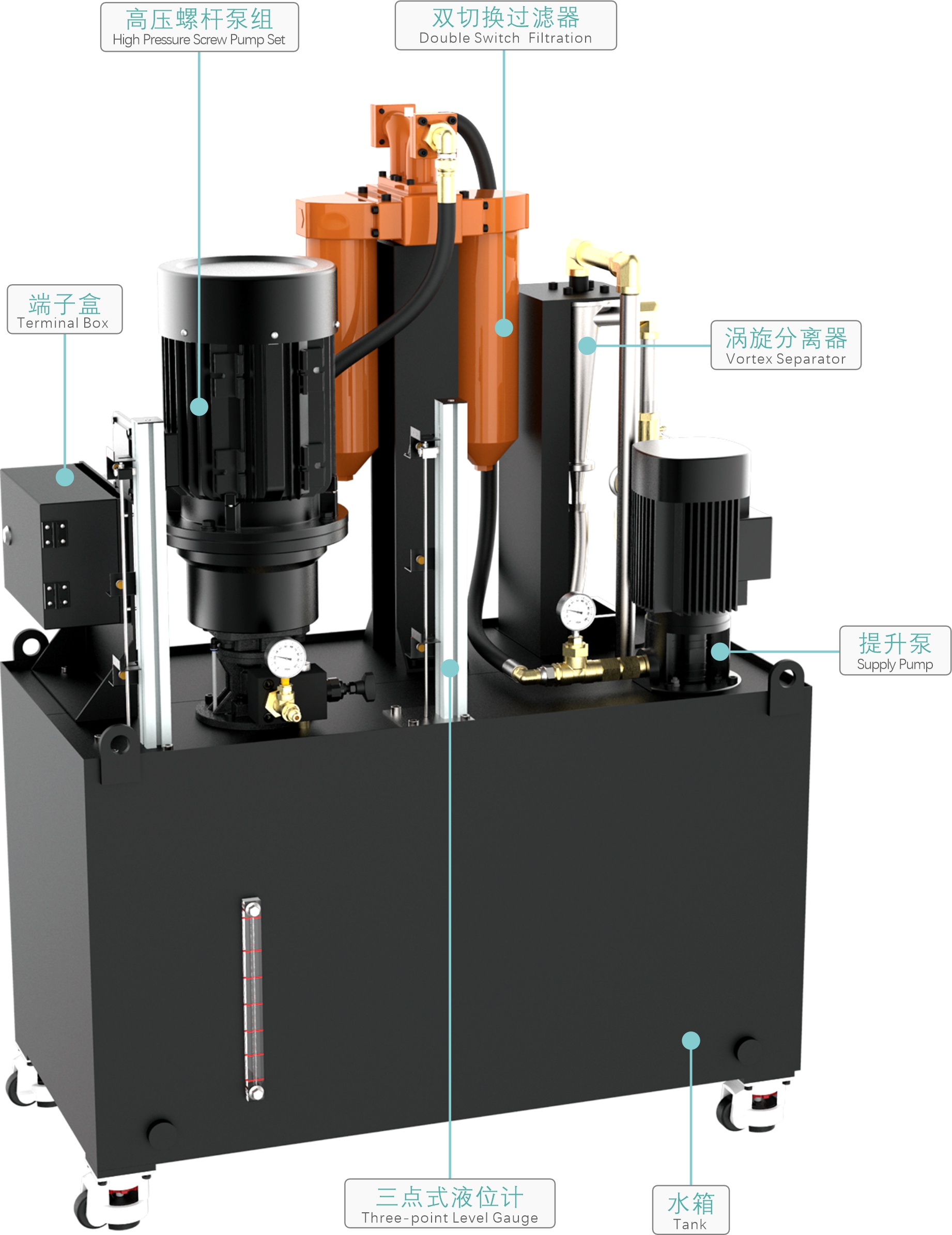

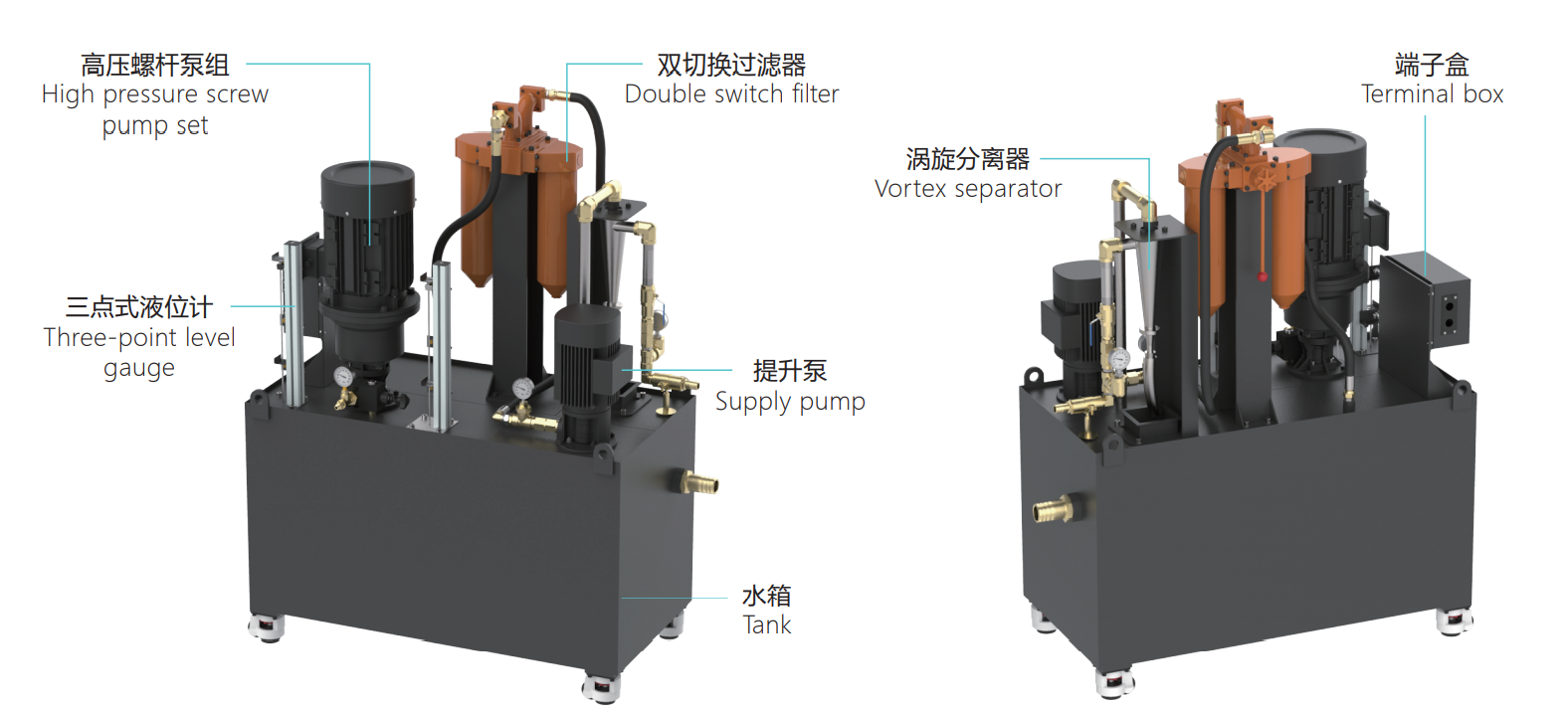

A3SS-XT7双切换过滤系统双筒式过滤器可用于24小时不停机工作的工况，正常工作情况下为单筒过滤工作，在更换滤芯时手动切换过滤方式，当一个过滤器报警时，切换为另一个清洁的滤筒工作，原则上可实现在线切换，以更换脏污滤筒。采用主副水箱的设计方式、液渣回收装置，以及副水箱自带提升泵。第一的过滤方式为涡旋过滤，当副水箱过滤完成后，提升泵将冷却液输送至双切换过滤器输送至主水箱，有效的保证在恶劣的工况下24小时不停机工作。
A3SS-XT7 double switch filter system Double cylinder filter can be used for 24 hours non-stop working conditions, under normal working conditions for single cylinder filter work, manually switch the filter mode when replacing the filter element, when a filter alarm, switch to another clean filter cylinder work, in principle can be realized online switch to replace dirty filter cylinder. The design method of the main and secondary water tanks, the liquid slag recovery device, and the lifting pump of the secondary water tanks are adopted. The filtration method of the first stage is vortex filtration. After the filtration of the secondary water tank is completed, the lift pump transmits the coolant to the double switch filter to the main water tank, which effectively ensures that the work is not shut down for 24 hours under harsh working conditions.
二、典型应用场景--Typical application scenario
适用于重切屑的工况，内置双水箱过滤结构。兼容立式/卧式加工中心、车铣复合产线，五轴联动机床，适应加工钢件、铝件、不锈钢件。
Suitable for heavy chip cutting conditions, with built-in double water tank filtration structure. Compatible with vertical/horizontal machining centers, turning and milling production lines, five-axis linkage machine tools, and suitable for processing steel, aluminum, and stainless steel parts.
