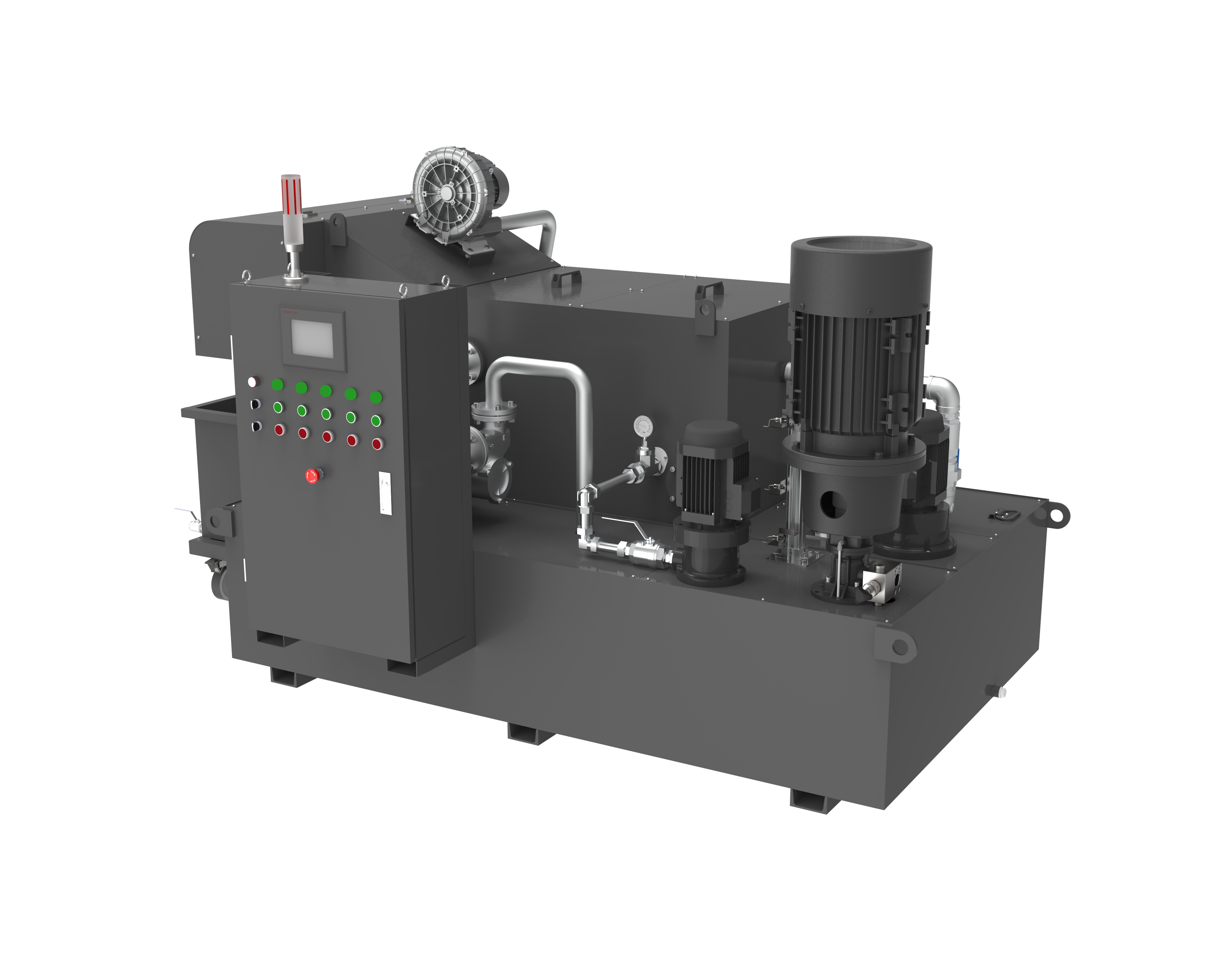

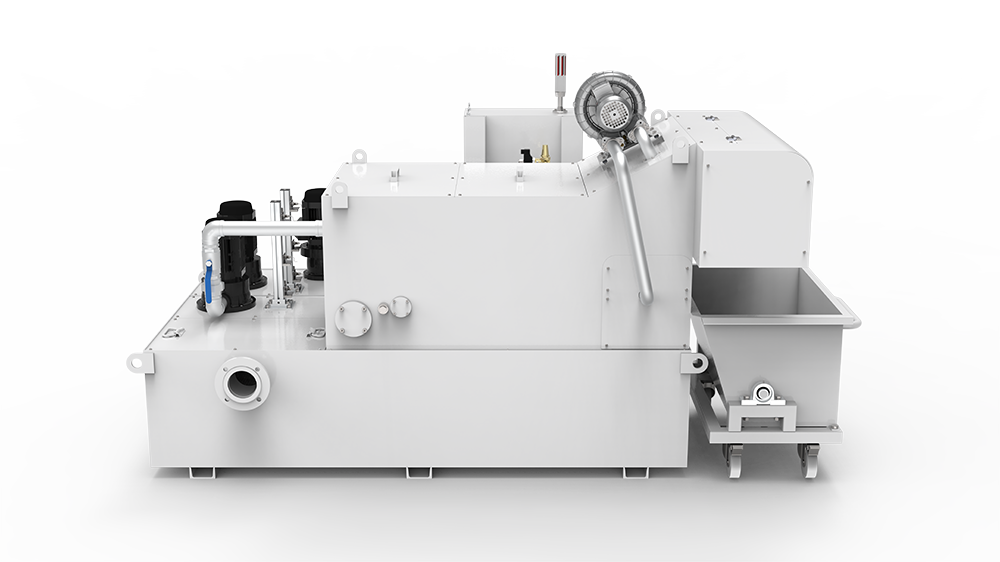

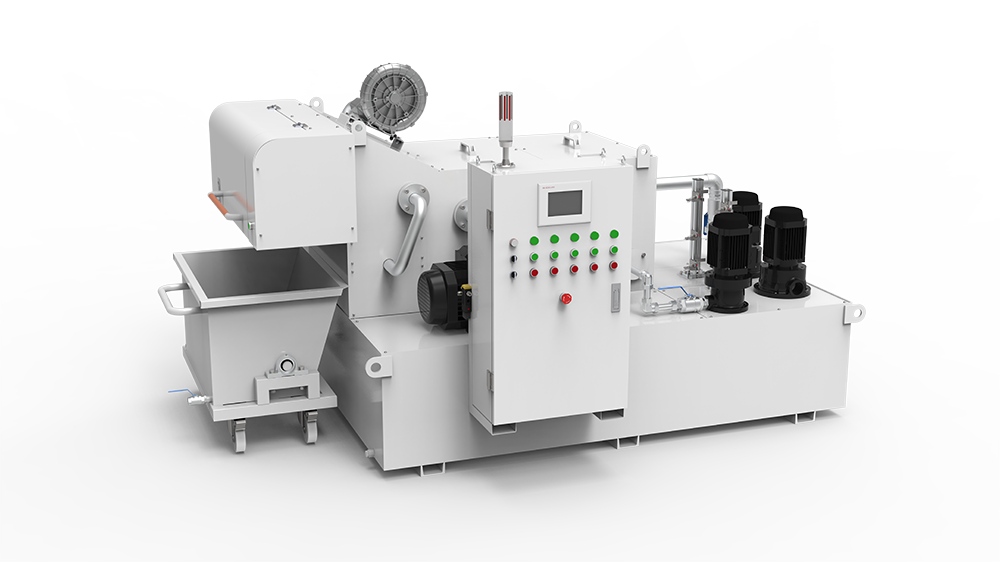

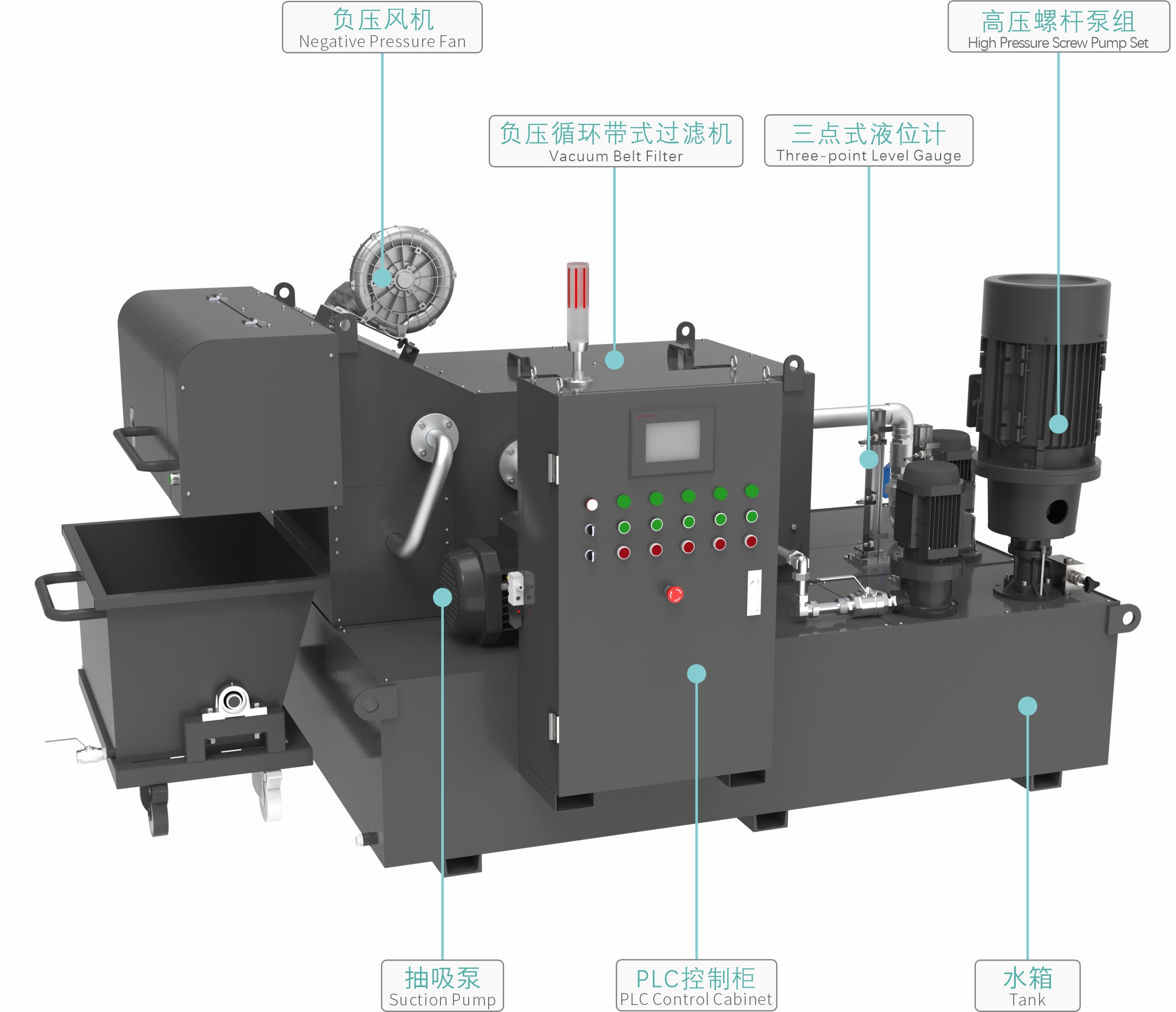

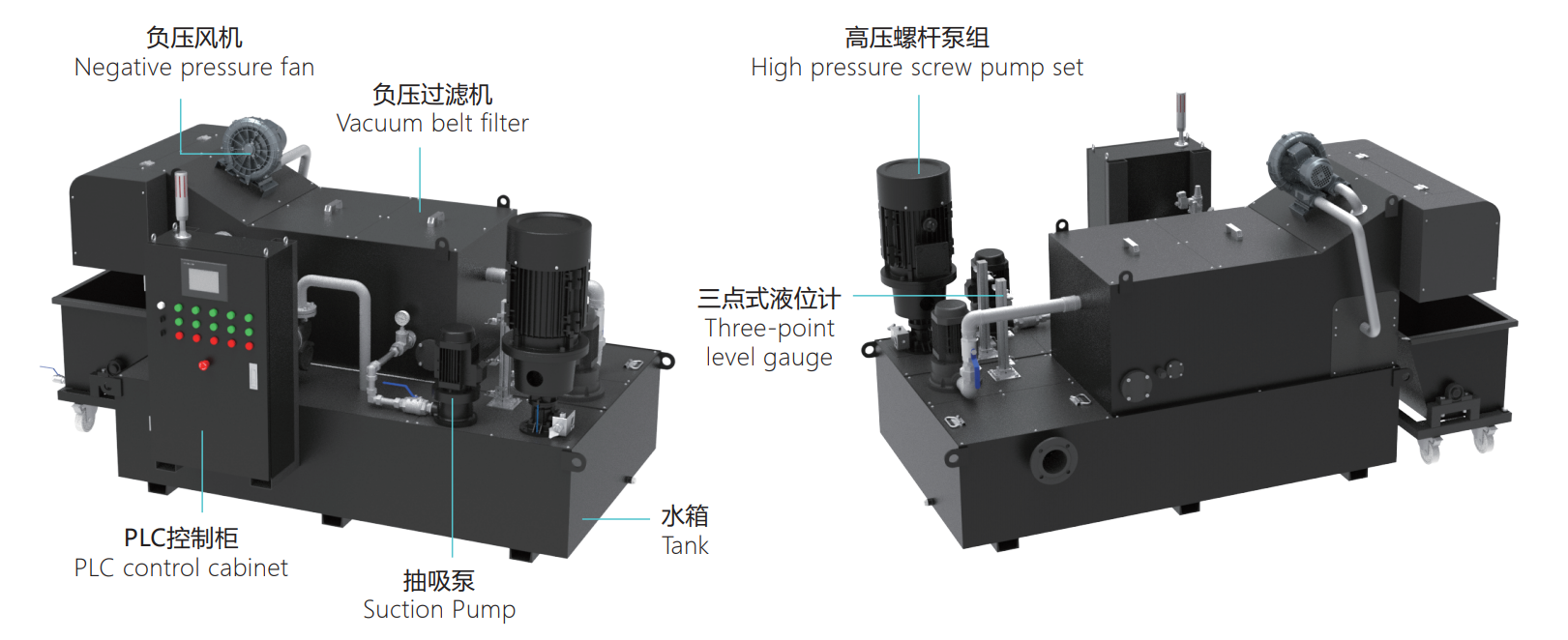

A3SS-XT14 负压循环带式过滤系统
A3SS-XT14 Vacuum Belt Filter System

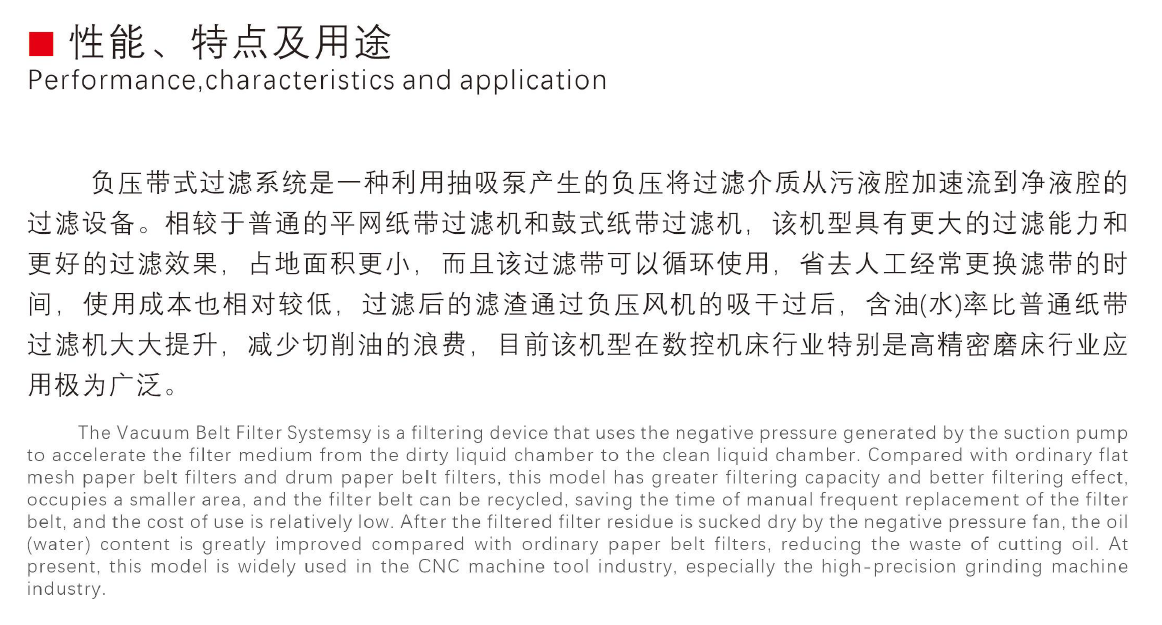

一、性能、特点及用途--Performance,characteristics and application

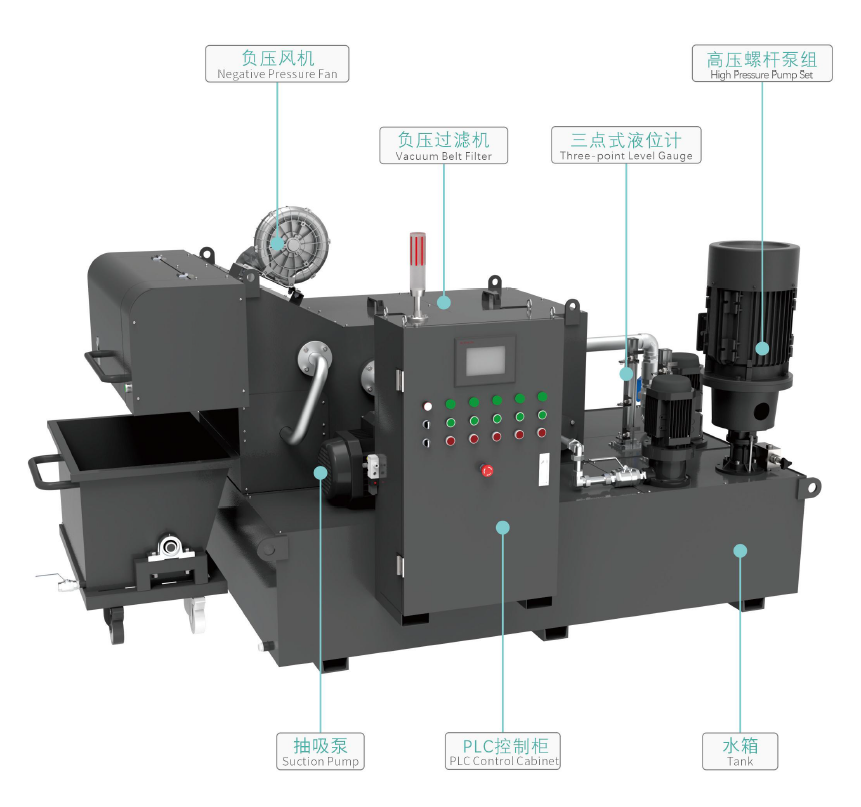

负压带式过滤系统是一种利用抽吸泵产生的负压将过滤介质从污液腔加速流到净液腔的过滤设备。相较于普通的平网纸带过滤机和鼓式纸带过滤机，该机型具有更大的过滤能力和更好的过滤效果，占地面积更小，而且该过滤带可以循环使用，省去人工经常更换滤带的时间，使用成本也相对较低，过滤后的滤渣通过负压风机的吸干过后，含油(水)率比普通纸带过滤机大大提升，减少切削油的浪费，目前该机型在数控机床行业特别是高精密磨床行业应用极为广泛。
The Vacuum Belt Filter Systemsy is a filtering device that uses the negative pressure generated by the suction pump to accelerate the filter medium from the dirty liquid chamber to the clean liquid chamber. Compared with ordinary flatmesh paper belt filters and drum paper belt filters, this model has greater filtering capacity and better filtering effect, occupies a smaller area, and the filter belt can be recycled, saving the time of manual frequent replacement of the filter belt, and the cost of use is relatively low. After the filtered filter residue is sucked dry by the negative pressure fan, the oil (water) content is greatly improved compared with ordinary paper belt filters, reducing the waste of cutting oil. At present, this model is widely used in the CNC machine tool industry, especially the high-precision grinding machine industry.

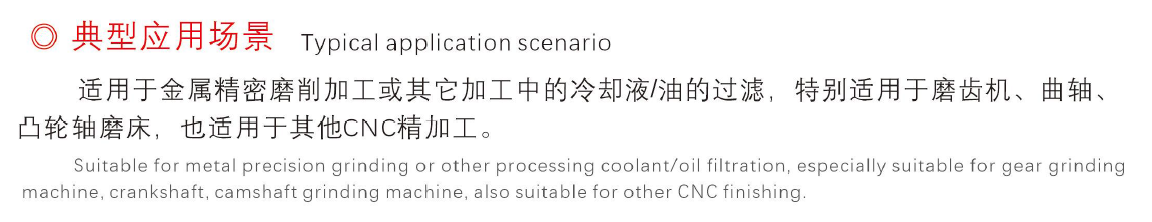

二、典型应用场景--Typical application scenario
适用于金属精密磨削加工或其它加工中的冷却液/油的过滤，特别适用于磨齿机、曲轴、凸轮轴磨床，也适用于其他CNC精加工。
Suitable for metal precision grinding or other processing coolant/oil filtration, especially suitable for gear grinding machine, crankshaft, camshaft grinding machine, also suitable for other CNC finishing.
