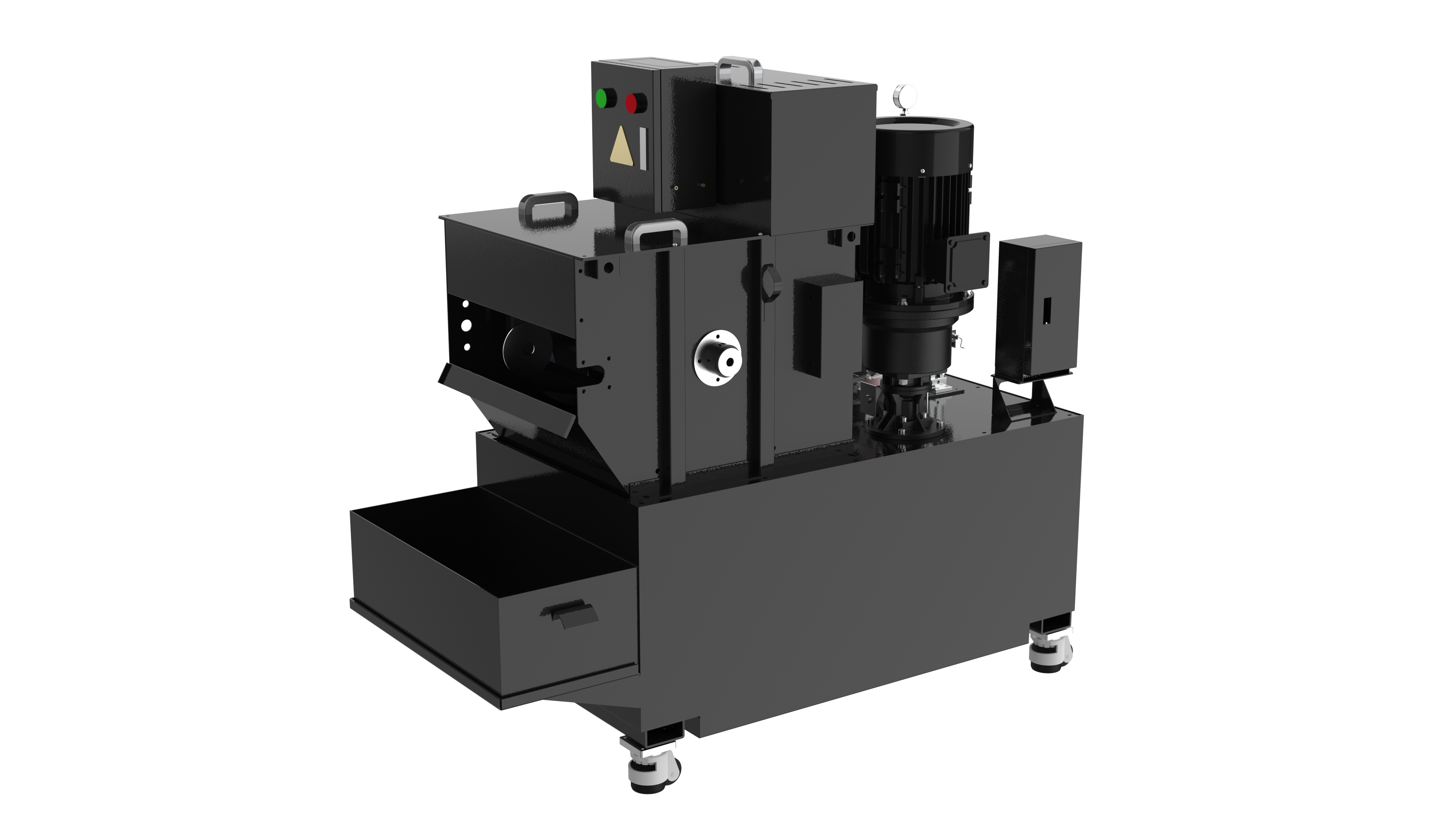

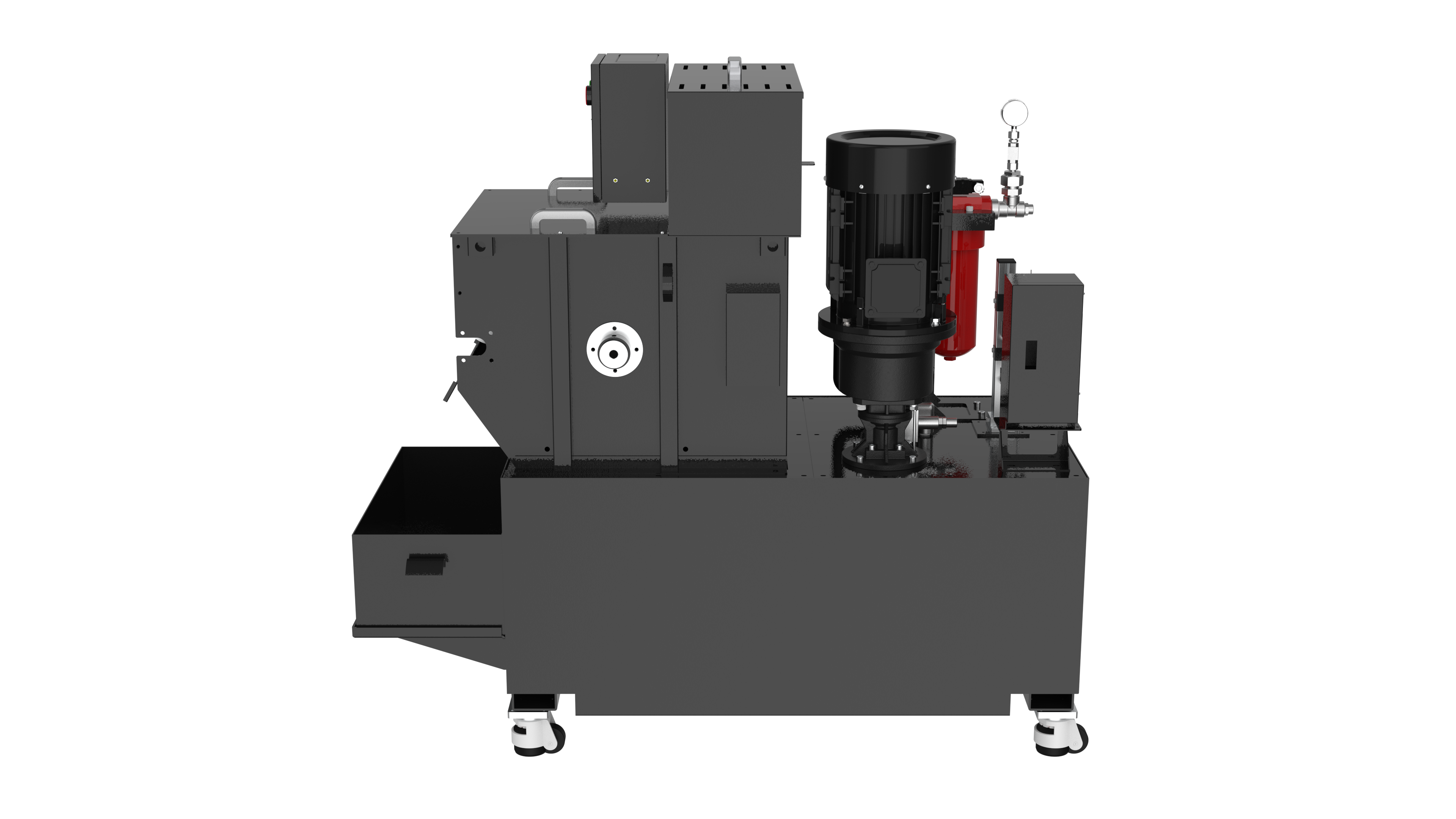

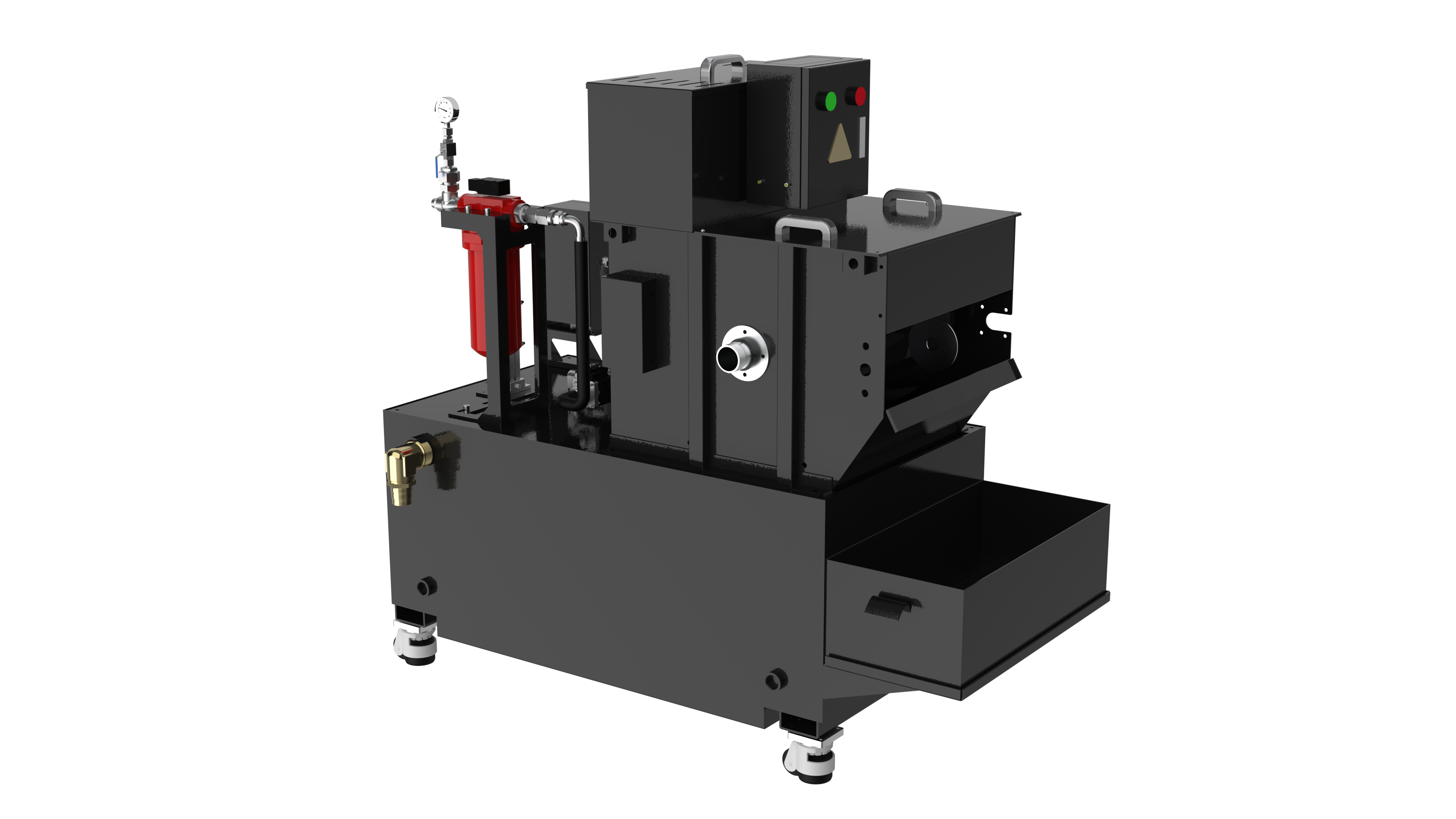

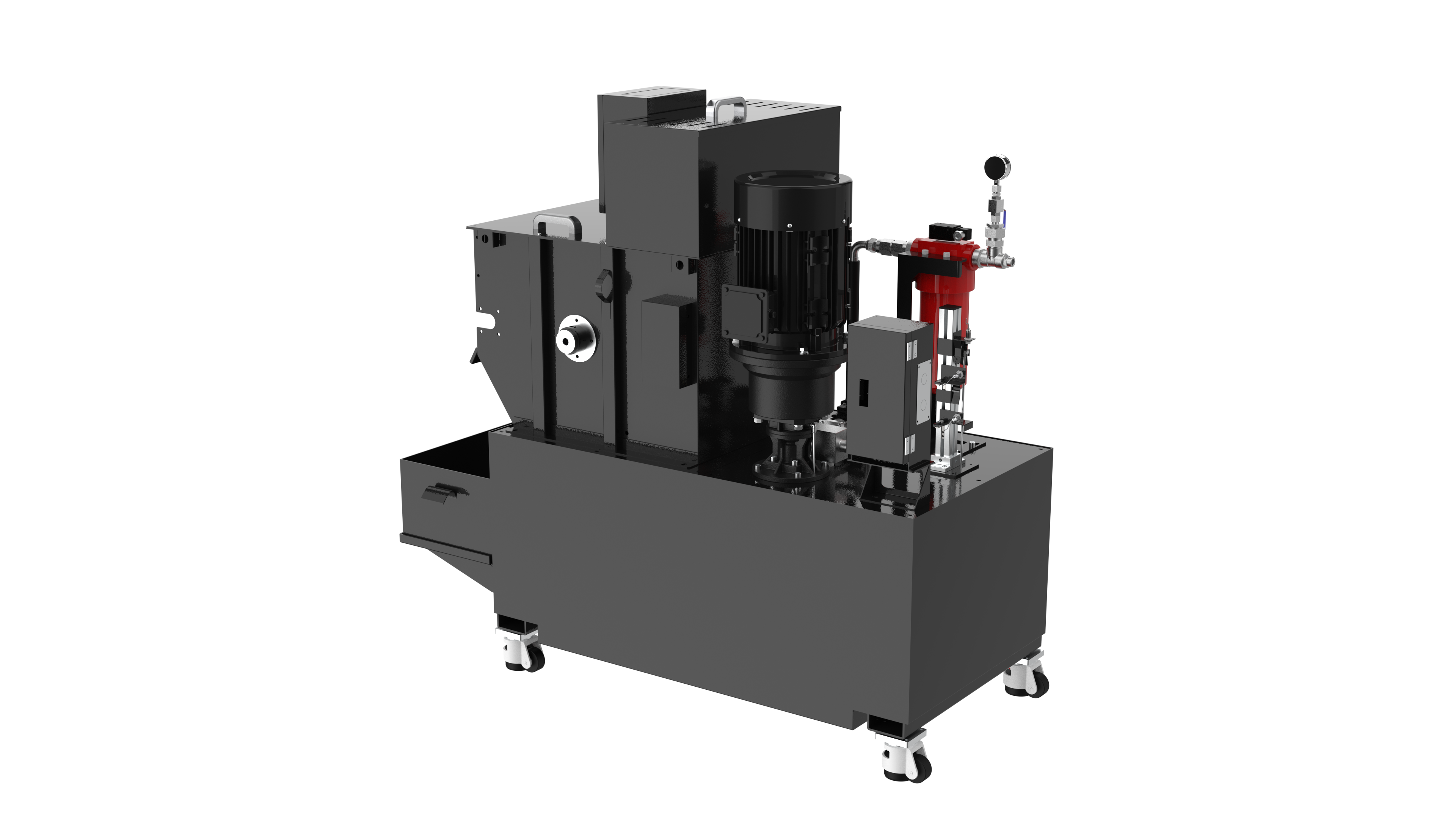

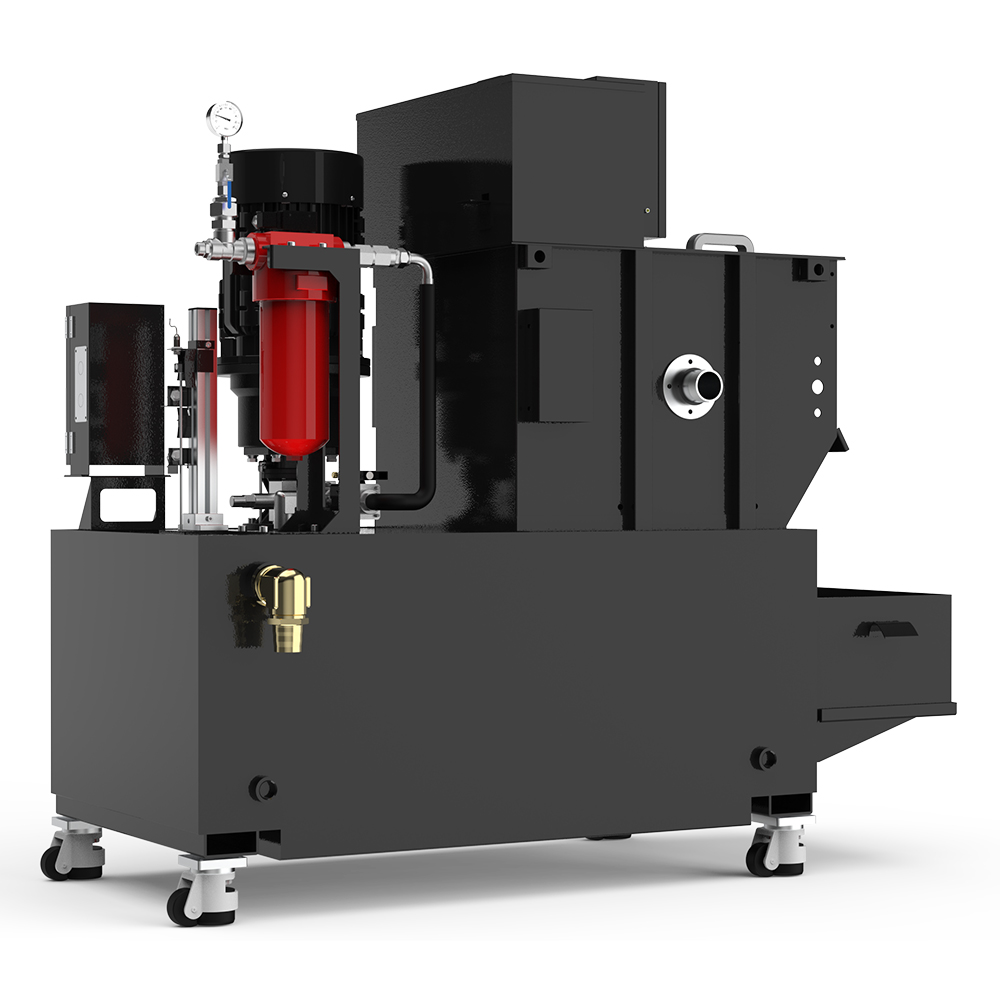

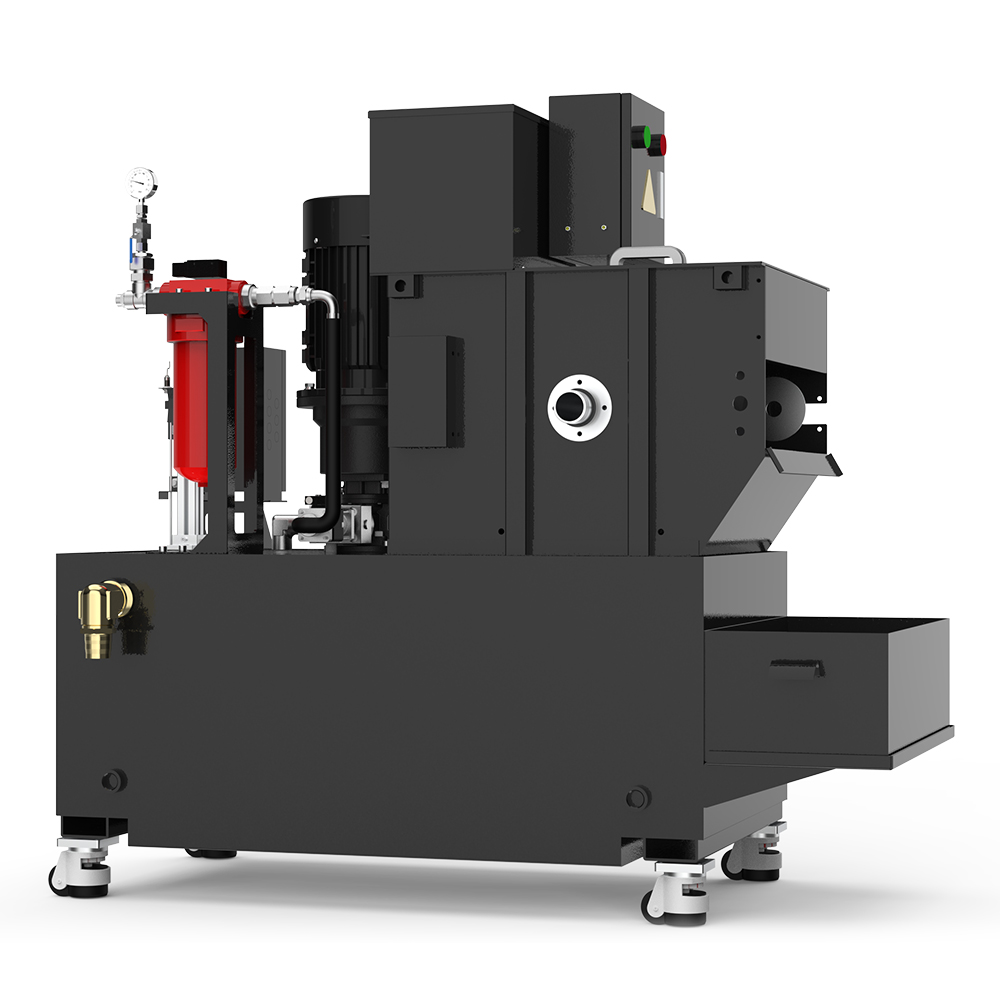

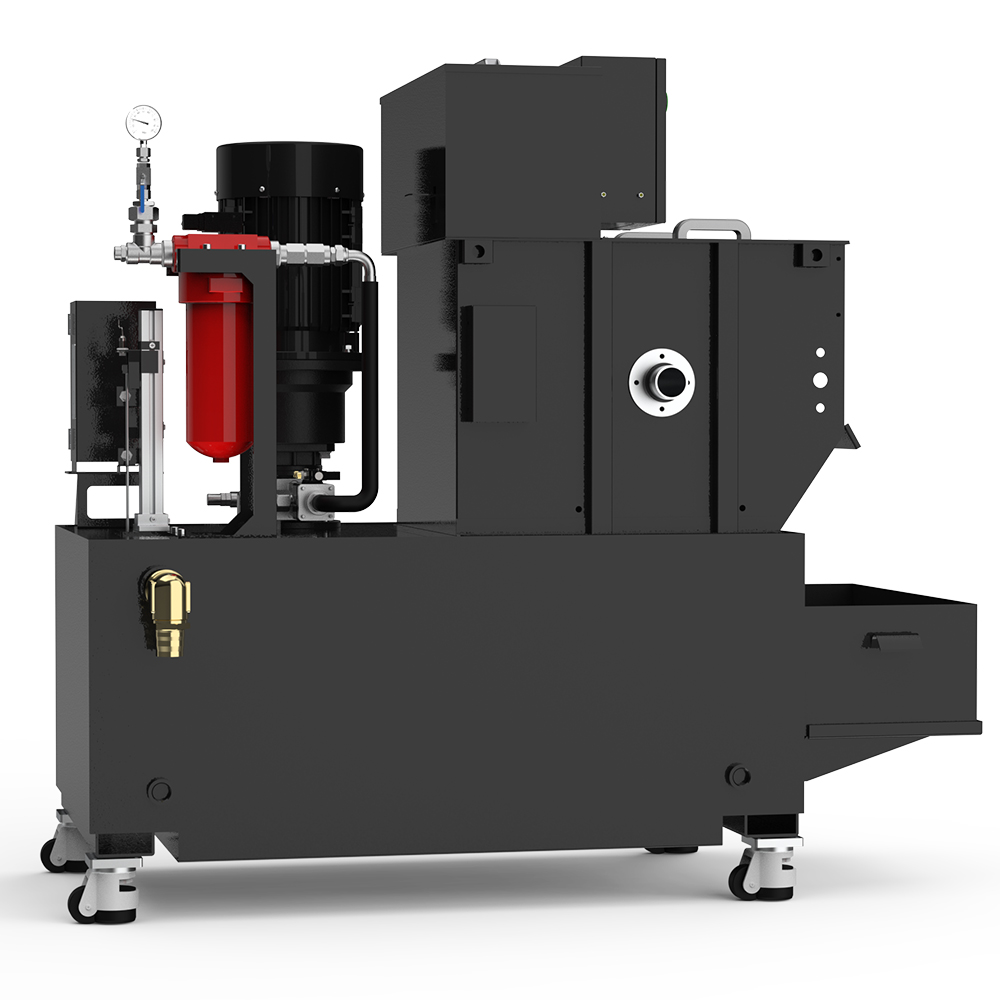

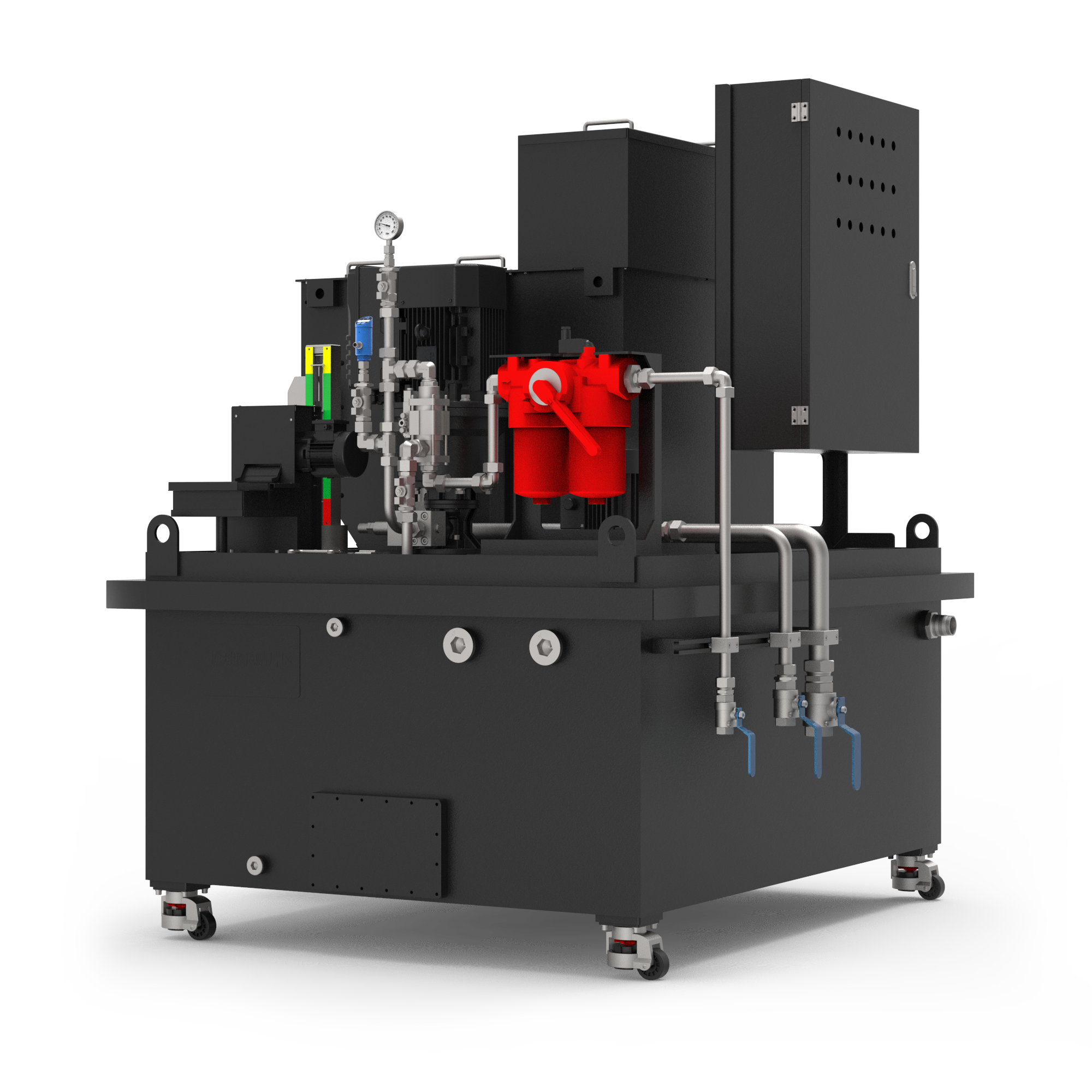

CJC3SS-XT15 鼓式中心射流清屑机
CJC3SS-XT15 Drum central jet cleaner

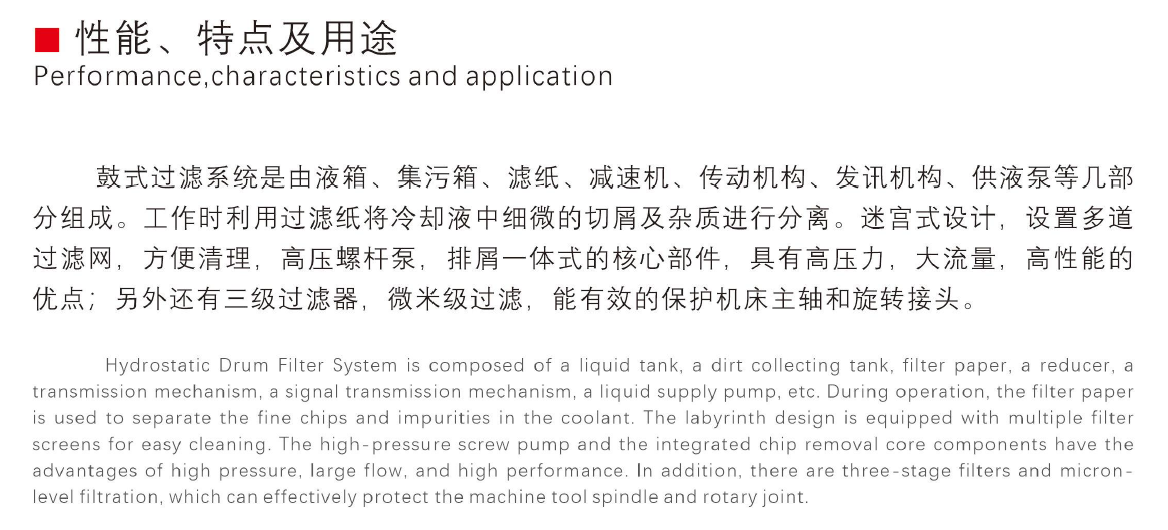

一、特征优势与应用--Feature advantages and applications
CJC3SS-XT15 鼓式中心射流清屑机是由液箱、集污箱、滤纸、减速机、传动机构、发讯机构、供液泵等几部分组成。工作时利用过滤纸将冷却液中细微切屑及杂质进行分离。迷宫式设计，设置多道过滤腔体方便清理。高压螺杆泵排屑一体式的核心部件，具有高压力，大流量，高性能等的优点；另外还有三过滤器，微米过滤，能有效的保护机床主轴和旋转接头。
CJC3SS-XT15 Drum central jet is composed of several parts, including a liquid tank, a dirt collection tank, filter paper, a reducer, a transmission mechanism, a signaling mechanism, and a liquid supply pump.During operation, filter paper is used to separate fine chips and impurities from the coolant.Maze-style design, with multiple filtering chambers for easy cleaning.The core component of the integrated chip removal system for high-pressure screw pumps features high pressure, large flow rate and high performance.In addition, there are three-stage filters with micron-level filtration, which can effectively protect the machine tool spindle and rotary joints.
二、典型应用场景--Typical application scenario
适用各种精加工工况，采用鼓式过滤机，兼容五轴、立式/卧式加工中心、车铣复合等产线的粗精加工，适应于钢件、铝件、不锈钢等材料的加工，针对铁磁性的铁屑还可以配合磁性分离器使用。
Suitable for various finishing conditions, it employs a drum filter and is compatible with rough and finish machining on production lines such as five-axis, vertical/horizontal machining centers, and turn-milling complexes. It is adaptable to the processing of steel, aluminum, stainless steel, and other materials. For ferromagnetic iron chips, it can also be used in conjunction with a magnetic separator.

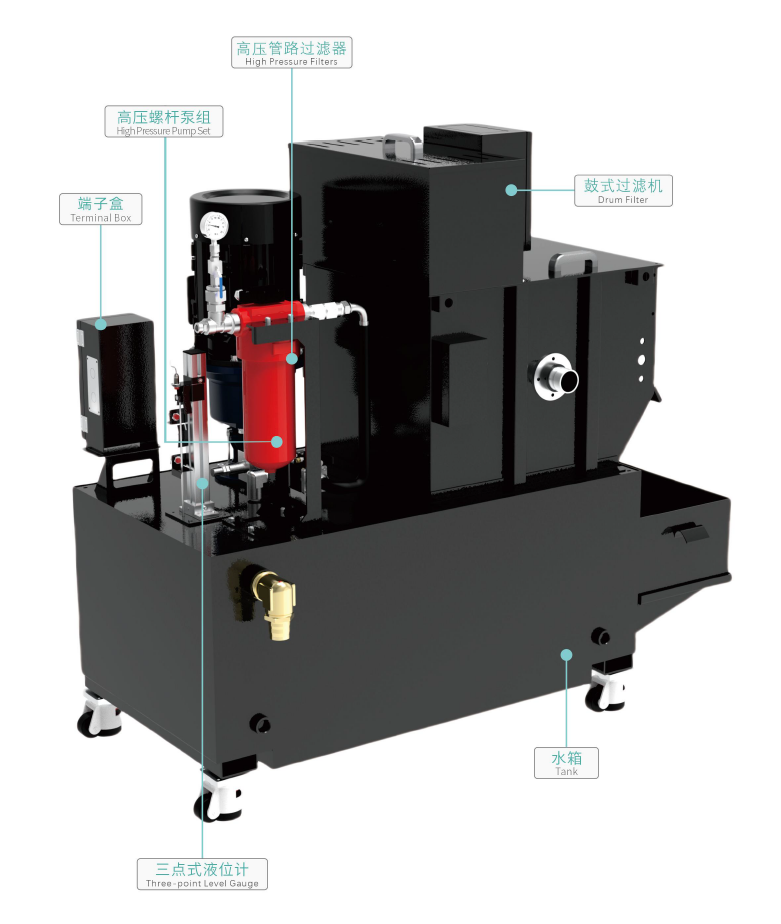

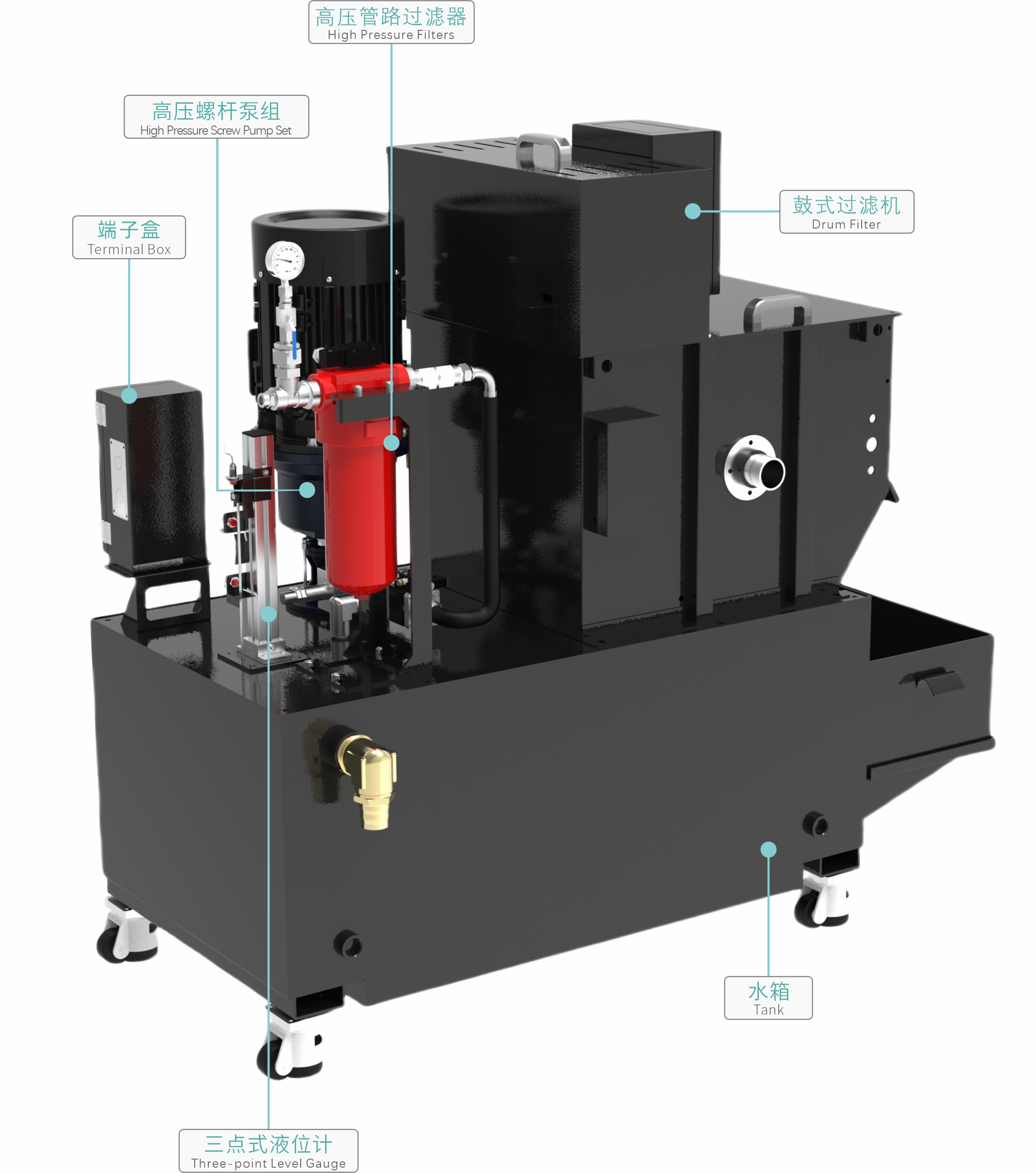

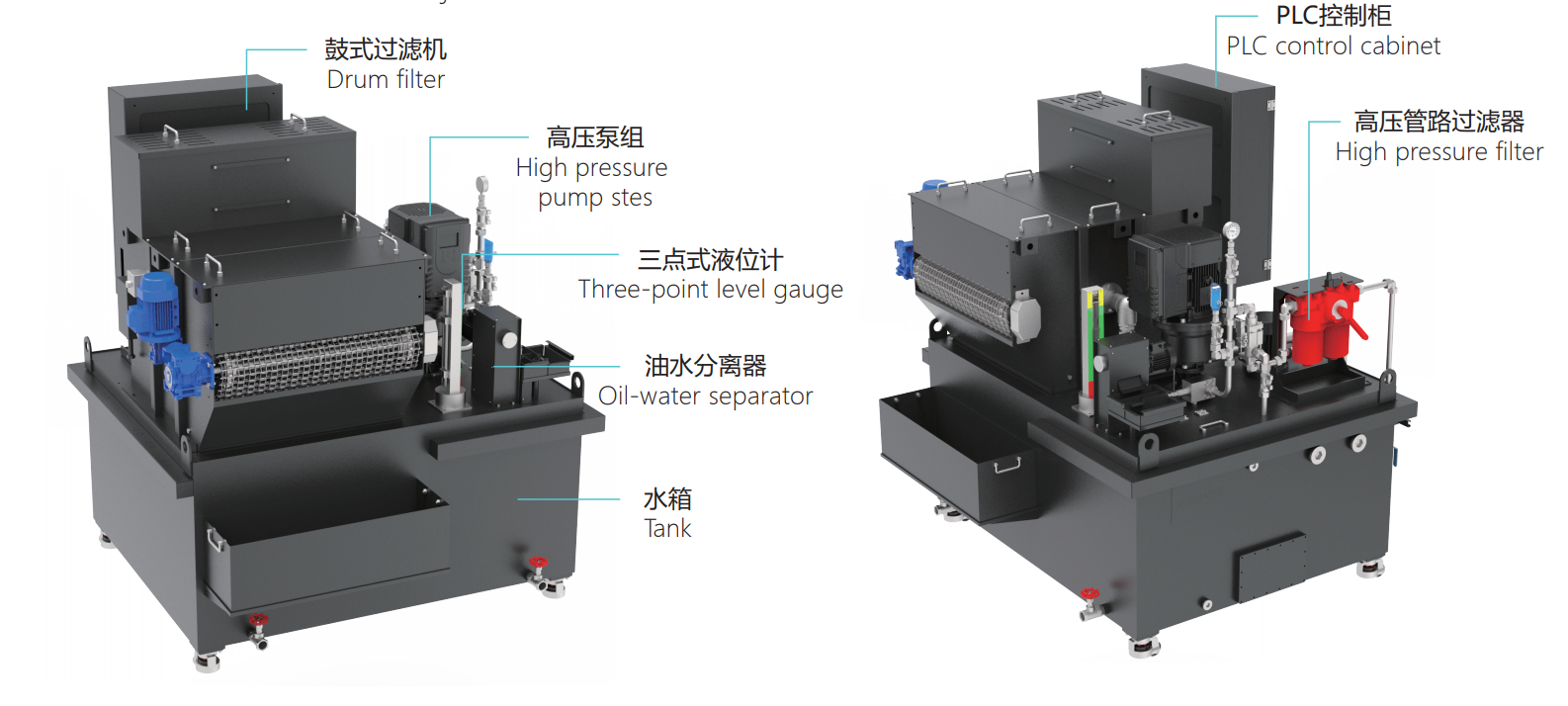

三、核心结构组成--Core structural components
